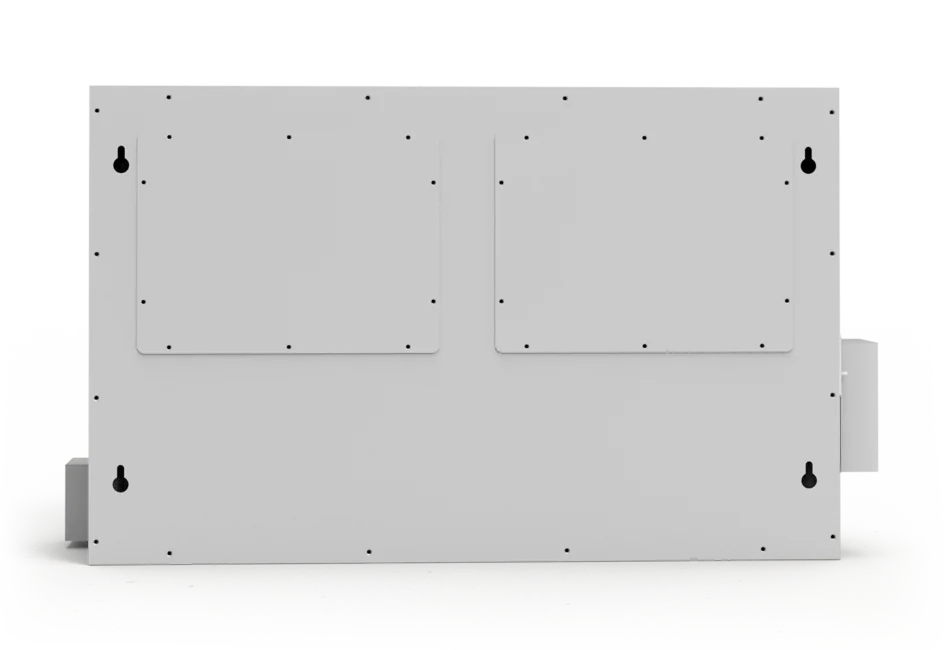

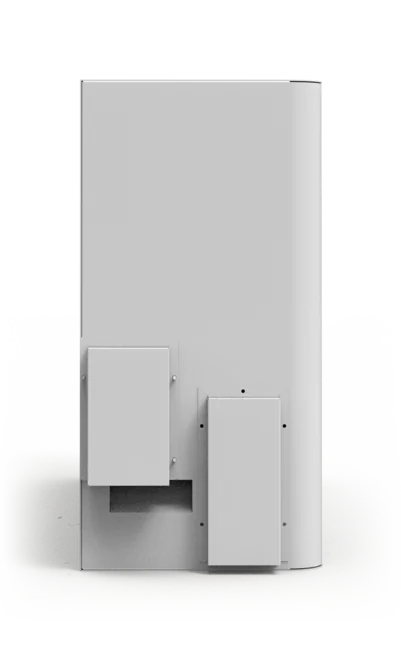

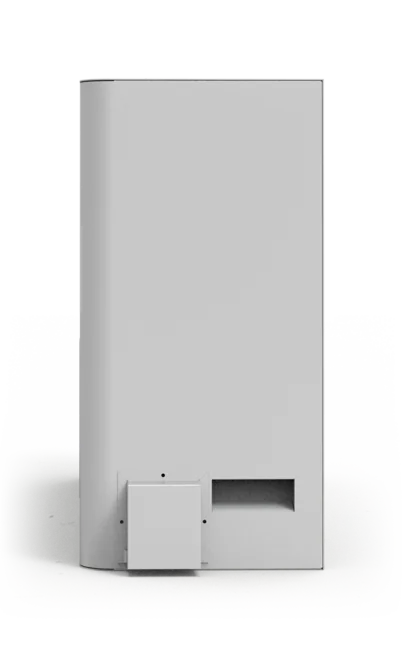

VAS SplitSeriesSplit unit precision air conditioners, AC- and DC-powered
- Models in DC and AC/DC
- Cooling performance range: 3,500-10,600W
- High-efficient with advanced control and cooling performance regulation
- Designed for cyclic off-grid application w. battery power backup
- Redundancy functionality for 2 units operation
- Designed for rooms with sensitive electronics that need strict thermal control
- Low starting current with soft ramp-up and –down functionality for smooth operation
- Aluzinc Steel
- Powder-coated in RAL 9016
- Split-unit concept
- Washable filter in indoor unit
- User-friendly assembly and maintenance
- IP55 (IEC60529)
- CE, UL/cUL
- RoHs/REACH/CLP
- Telcordia GR-487 capable
Request a quote
Split unit precision air conditioners, AC- and DC-powered
- Models in DC and AC/DC
- Cooling performance range: 3,500-10,600W
- High-efficient with advanced control and cooling performance regulation
- Designed for cyclic off-grid application w. battery power backup
- Redundancy functionality for 2 units operation
- Designed for rooms with sensitive electronics that need strict thermal control
- Low starting current with soft ramp-up and –down functionality for smooth operation
- Aluzinc Steel
- Powder-coated in RAL 9016
- Split-unit concept
- Washable filter in indoor unit
- User-friendly assembly and maintenance
- IP55 (IEC60529)
- CE, UL/cUL
- RoHs/REACH/CLP
- Telcordia GR-487 capable
Products within the series
Product filters
Product filters
| Product | Cooling capacity | Voltage | Width | Height | Depth | Refrigerant | Material |
|---|---|---|---|---|---|---|---|
| VAS 5000 DC Split D3 | 5000W17100 BTU/H | 48V DC | 1000/900 mm39.4/35.4 in | 1000/684 mm39.4/26.9 in | 280/330 mm11/13 in | R134a | Aluzinc Steel |
| VAS 7000 DC Split D3 | 7000W23900 BTU/H | 48V DC | 950/905 mm37.4/35.6 in | 950/934 mm37.4/36.8 in | 300/380 mm11.8/15 in | R134a | Aluzinc Steel |
| VAS 5000 AD Split A2D3 | 5000W17100 BTU/H | 1 x 230 V / 48 V AC/DC | 905/860 mm35.6/33.9 in | 905/620 mm35.6/24.4 in | 205/322 mm8.1/12.7 in | R410a | Aluzinc Steel |
| VAS 7000 AD Split A2D3 | 7000W23900 BTU/H | 1 x 230 V / 48 V AC/DC | 1100/1000 mm43.3/39.4 in | 1100/1250 mm43.3/49.2 in | 1000/460 mm39.4/18.1 in | R410a | Aluzinc Steel |
Request a quote or technical guidance
Provide your technical requirements and our team will prepare a tailored recommendation and quotation.
Other air conditioner series

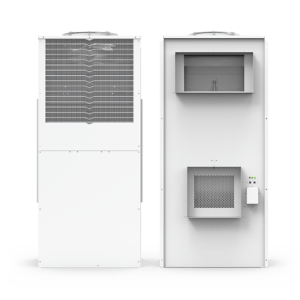

VAE Packaged
The VAE Packaged series is designed for enclosures and shelters with high-density data processing applications that require strict thermal control. With high-capacity cooling, integrated intelligent free cooling, and advanced controller functionality, VAE supports reliable temperature management for telecom, edge data center, energy storage, and industrial environments.
VTE Thermoelectric enclosure coolers
The VTE series consists of panel-mounted thermoelectric enclosure coolers designed for installations where compressor-based air conditioners are not suitable. With cooling capacities from 300-1400 BTU | 100-400 W and both DC and AC power options, VTE coolers provide reliable cabinet cooling for sensitive electronics in telecom and industrial enclosures.

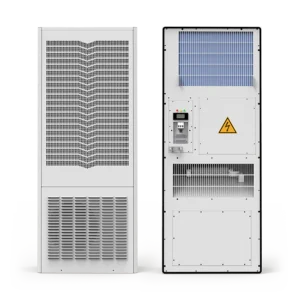

VAK Slim BABAA compliant
