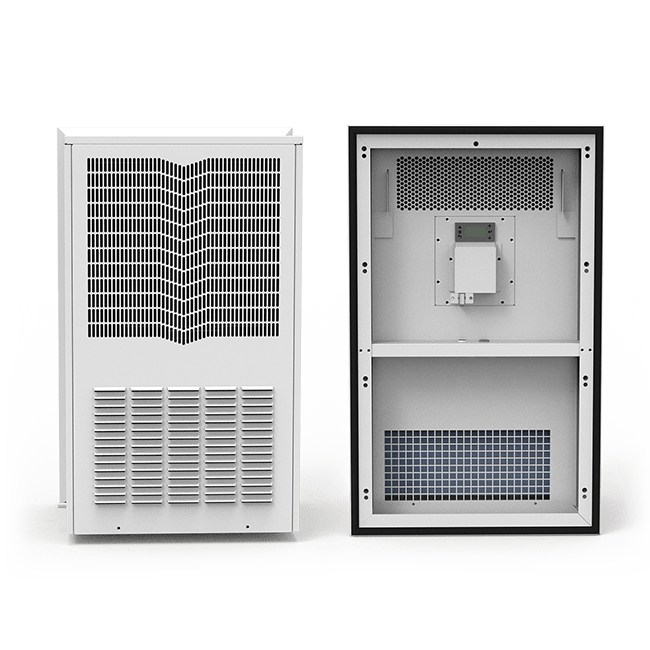

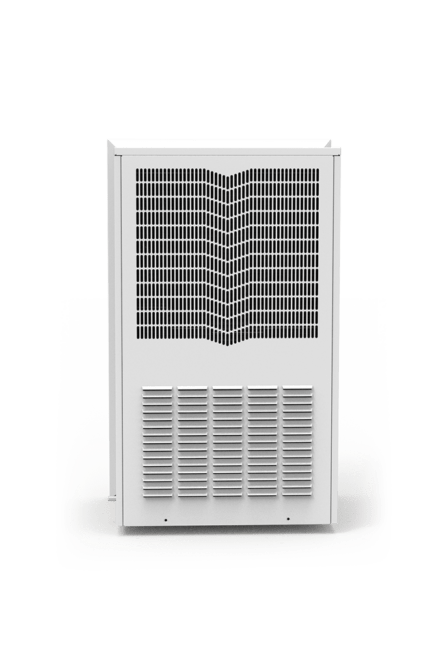

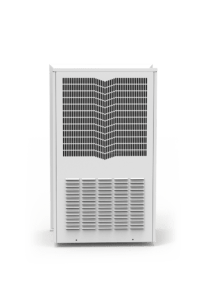

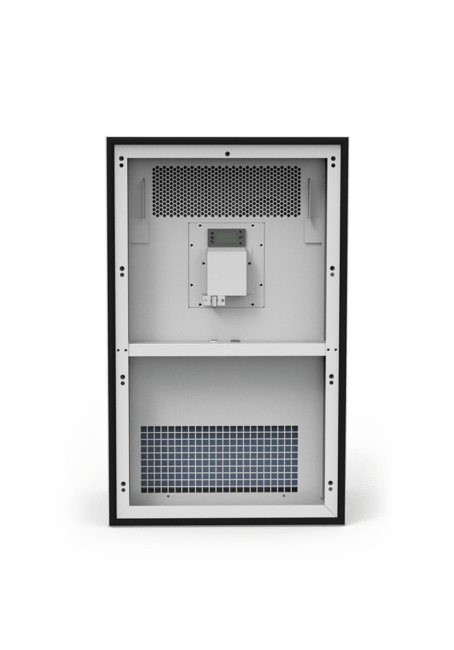

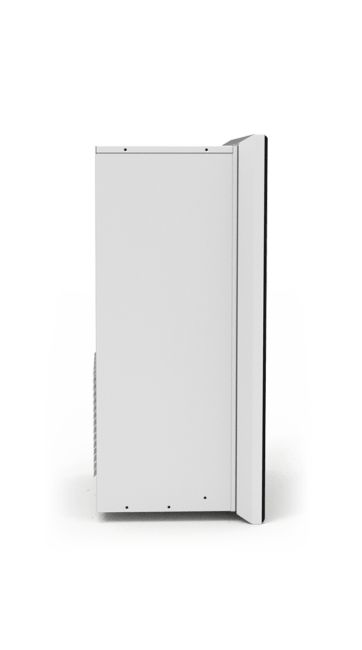

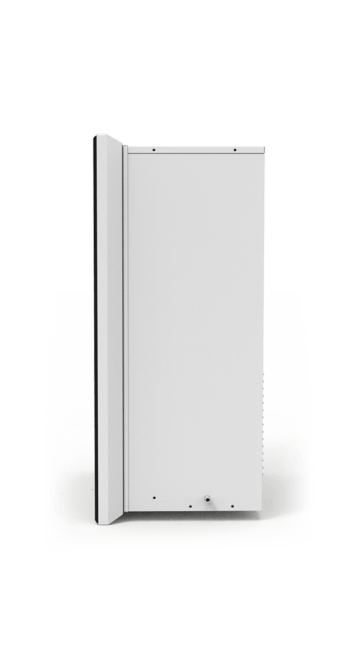

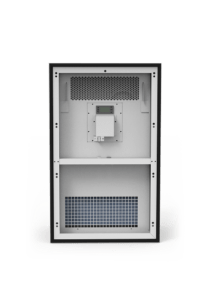

VAK Compact Series

Compact panel-mounted precision air conditioners, AC powered

Standard mounting interface
Advanced controls
Optional SNMP L3 communication
  • Efficient and compact AC air conditioner
  • Cooling performance range: 300W to 1200W
  • Eco-friendly refrigerant CFC-free R513A/R134A
  • Operation optimized for hybrid sites, use of DC generators, etc
  • Designed for cyclic off-grid application w. battery power backup
  • Aluzinc Steel
  • Powder-coated in RAL 7035
  • Louver in front of external fan
  • Exterior installation; partially recessed mounting options
  • Self-test functionality
  • IP65 (IEC60529)
  • CE, UL/cUL
  • NEMA-3R
  • RoHs/REACH/CLP
  • Telcordia GR-487 capable
  • Efficient and compact AC air conditioner
  • Cooling performance range: 300W to 1200W
  • Eco-friendly refrigerant CFC-free R513A/R134A
  • Operation optimized for hybrid sites, use of DC generators, etc
  • Designed for cyclic off-grid application w. battery power backup
  • Aluzinc Steel
  • Powder-coated in RAL 7035
  • Louver in front of external fan
  • Exterior installation; partially recessed mounting options
  • Self-test functionality
  • IP65 (IEC60529)
  • CE, UL/cUL
  • NEMA-3R
  • RoHs/REACH/CLP
  • Telcordia GR-487 capable
Standard mounting interface
Advanced controls
Optional SNMP L3 communication

Filters

Measurement system:

Products within the series

0 product(s) matching your selection

Product Cooling capacity Voltage Width Height Depth Refrigerant Material
VAK C300 AC Compact A1300 W1023.64 BTU/H1 x 115V AC191 mm7.51 in400 mm15.74 in160 mm6.29 inR513a/R134aAluzinc Steel
VAK C300 AC Compact A2300 W1023.64 BTU/H1 x 230V AC191 mm7.51 in400 mm15.74 in160 mm6.29 inR513aAluzinc Steel
VAK C600 AC Compact A1600 W2047.28 BTU/H1 x 115V AC254 mm10 in508 mm20 in251 mm9.88 inR513a/R134aAluzinc Steel
VAK C600 AC Compact A2600 W2047.28 BTU/H1 x 230V AC254 mm10 in508 mm20 in251 mm9.88 inR513aAluzinc Steel
VAK C600 AC Compact A3600 W2047.28 BTU/H1 x 400/460V AC254 mm10 in616 mm24.25 in251 mm9.88 inR513aAluzinc Steel

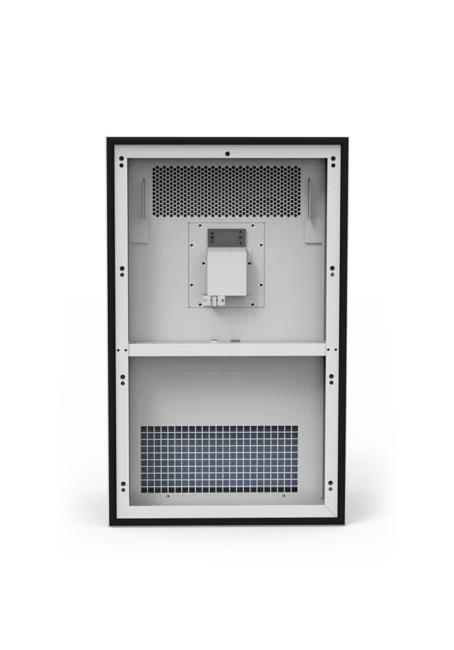

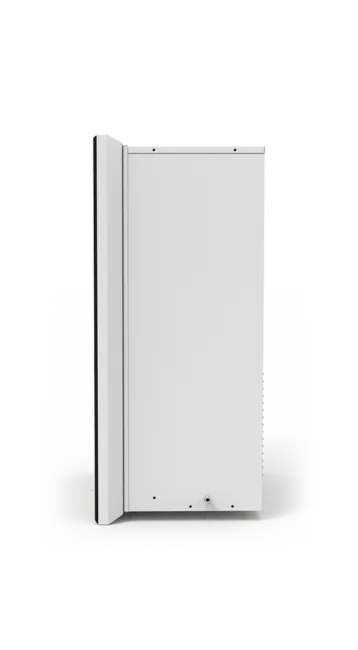

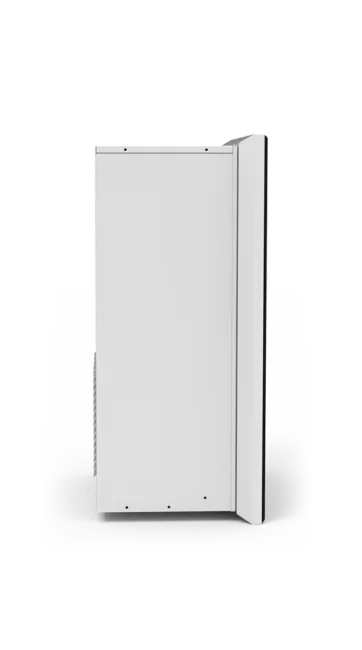

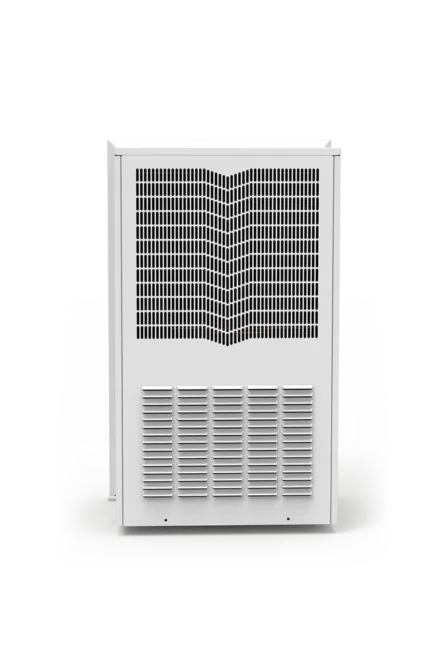

VAK C1200 AC Compact A11200 W4094.56 BTU/H1 x 115V AC432 mm17 in737 mm29.01 in287 mm11.29 inR513a/R134aAluzinc Steel
VAK C1200 AC Compact A21200 W4094.56 BTU/H1 x 230V AC432 mm17 in737 mm29.01 in287 mm11.29 inR513aAluzinc Steel
VAK C1200 AC Compact A31200 W4094.56 BTU/H1 x 400/460V AC432 mm17 in737 mm29.01 in287 mm11.29 inR513aAluzinc Steel
VAK C1800 AC Compact A11800 W6141.85 BTU/H1 x 115V AC400 mm15.74 in1092 mm42.99 in277 mm10.9 inR513aAluzinc Steel
VAK C1800 AC Compact A21800 W6141.85 BTU/H1 x 230V AC400 mm15.74 in1092 mm42.99 in277 mm10.9 inR513aAluzinc Steel
VAK C1800 AC Compact A31800 W6141.85 BTU/H1 x 400/460V AC400 mm15.74 in1092 mm42.99 in277 mm10.9 inR513aAluzinc Steel
VAK C2500 AC Compact A12500 W8530.35 BTU/H1 x 115V AC400 mm15.74 in1092 mm42.99 in277 mm10.9 inR513aAluzinc Steel
VAK C2500 AC Compact A22500 W8530.35 BTU/H1 x 230V AC400 mm15.74 in1092 mm42.99 in277 mm10.9 inR513aAluzinc Steel
VAK C2500 AC Compact A32500 W8530.35 BTU/H1 x 400/460V AC400 mm15.74 in1092 mm42.99 in277 mm10.9 inR513aAluzinc Steel
VAK C3000 AC Compact A13000 W10236.42 BTU/H1 x 115V AC400 mm15.74 in1092 mm42.99 in277 mm10.9 inR513aAluzinc Steel
VAK C3000 AC Compact A23000 W10236.42 BTU/H1 x 230V AC400 mm15.74 in1092 mm42.99 in277 mm10.9 inR513aAluzinc Steel
VAK C3000 AC Compact A33000 W10236.42 BTU/H1 x 400/460V AC400 mm15.74 in1092 mm42.99 in277 mm10.9 inR513aAluzinc Steel
VAK C3500 AC Compact A23500 W11942.49 BTU/H1 x 230V AC483 mm19.01 in1270 mm50 in281 mm11.06 inR513aAluzinc Steel
VAK C3500 AC Compact A33500 W11942.49 BTU/H1 x 400/460V AC483 mm19.01 in1270 mm50 in281 mm11.06 inR513aAluzinc Steel
VAK C5500 AC Compact A25500 W18766.77 BTU/H1 x 230V AC533 mm20.98 in1346 mm52.99 in330 mm12.99 inR513aAluzinc Steel
VAK C5500 AC Compact A3 5500 W18766.77 BTU/H1 x 400/460V AC533 mm20.98 in1346 mm52.99 in330 mm12.99 inR513aAluzinc Steel
