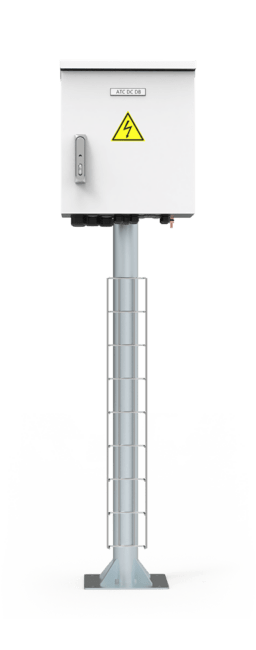

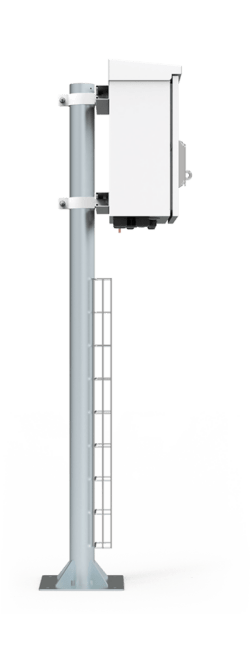

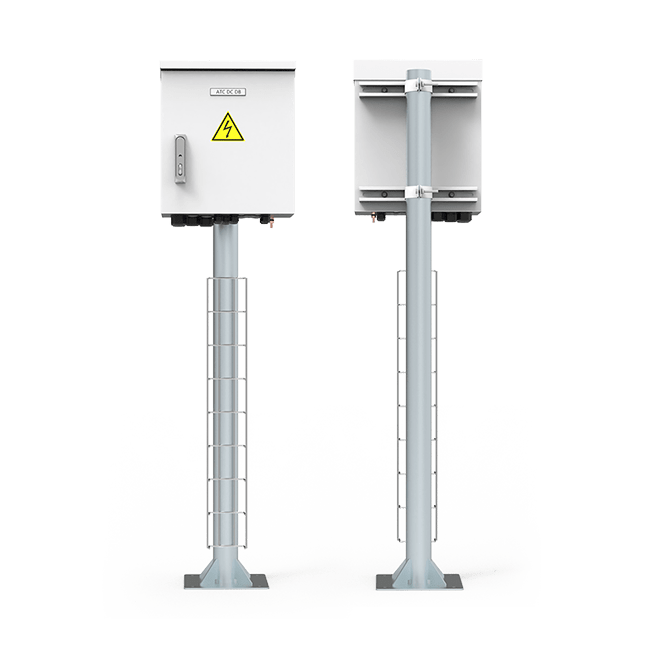

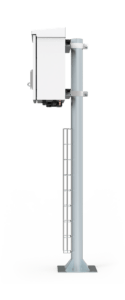

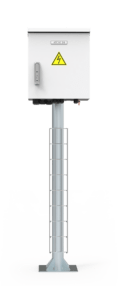

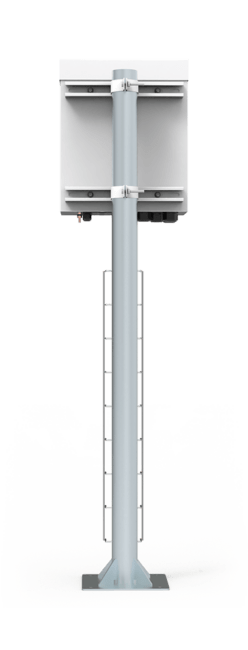

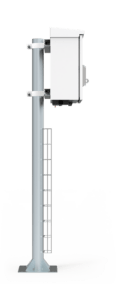

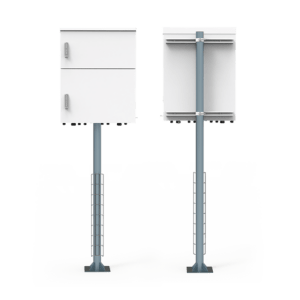

DCDBsSeriesDC distribution boards with multiple configuration options and features available
- The DC distribution boards are integrated based on project specific requirements with switchgear, surge protection, energy meters and functionality.
- Available in various configurations and with optional features
- Designed for demanding environments
- Standard models in 100A, 150A, 250A
- Switchgear, surge protection & energy meters
- Aluzinc Steel
- Powder-coated in RAL 9016
- 1-3-point stainless steel lock – 90˚ swing handle
- Stainless steel
- Available with distribution for priority load and non-priority load
- IP65
- CE, UL/cUL
- RoHs/REACH/CLP
- Telcordia GR-487 capable
Request a quote
DC distribution boards with multiple configuration options and features available
- The DC distribution boards are integrated based on project specific requirements with switchgear, surge protection, energy meters and functionality.
- Available in various configurations and with optional features
- Designed for demanding environments
- Standard models in 100A, 150A, 250A
- Switchgear, surge protection & energy meters
- Aluzinc Steel
- Powder-coated in RAL 9016
- 1-3-point stainless steel lock – 90˚ swing handle
- Stainless steel
- Available with distribution for priority load and non-priority load
- IP65
- CE, UL/cUL
- RoHs/REACH/CLP
- Telcordia GR-487 capable
Products within the series
Product filters
Product filters
| Product | Rated power | Mounting | Width | Height | Depth | Material | Std. color |
|---|---|---|---|---|---|---|---|
| DC Distribution Board, 100A | 100A, 48VDC | Wall/pole mounted | 350 mm13.8 in | 400 mm15.7 in | 225 mm8.9 in | Stainless Steel | RAL 9016 |
| DC Distribution Board, 100A, w/o L-CB | 100A, 48VDC | Wall/pole mounted | 350 mm13.8 in | 450 mm17.7 in | 200 mm7.9 in | Stainless Steel | RAL 9016 |
| DC Distribution Board, 125A, w. DC metering | 125A, 48VDC | Wall/pole mounted | 650 mm25.6 in | 700 mm27.6 in | 245 mm9.6 in | Stainless Steel | RAL 9016 |
| DC Distribution Board, 250A | 250A, 48VDC | Wall/pole mounted | 380 mm15 in | 600 mm23.6 in | 200 mm7.9 in | Stainless Steel | RAL 9016 |
