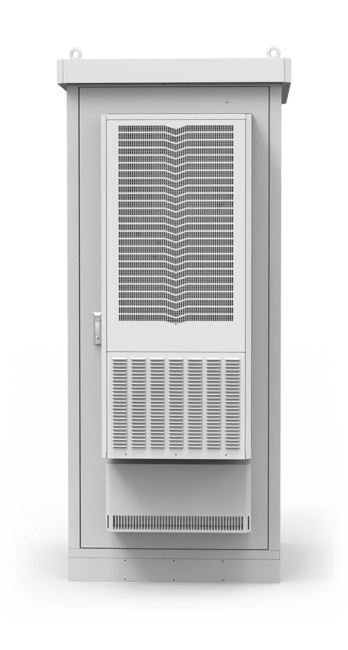

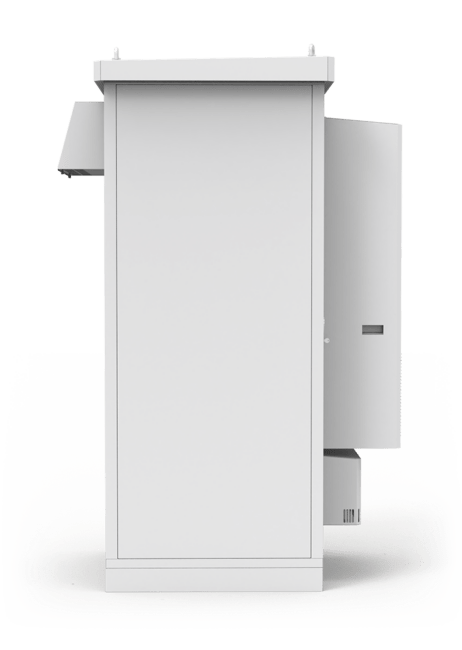

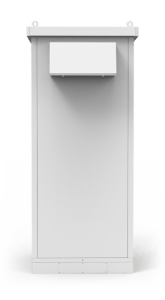

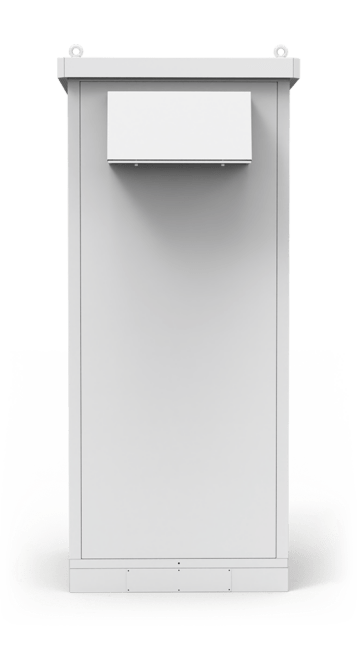

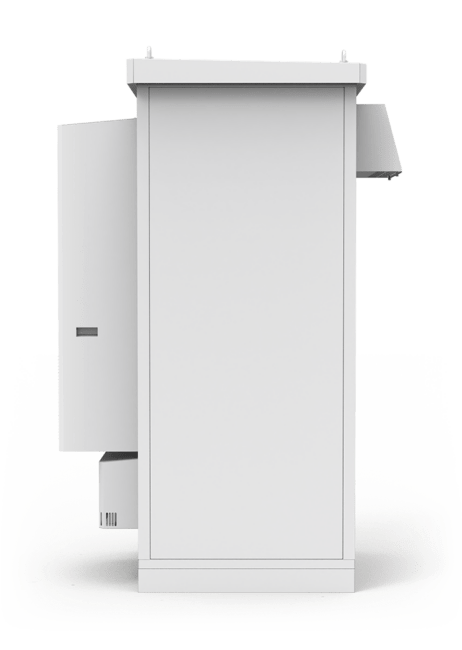

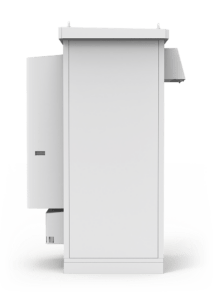

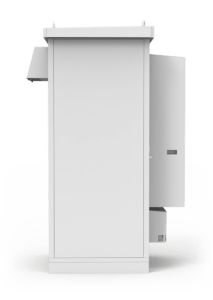

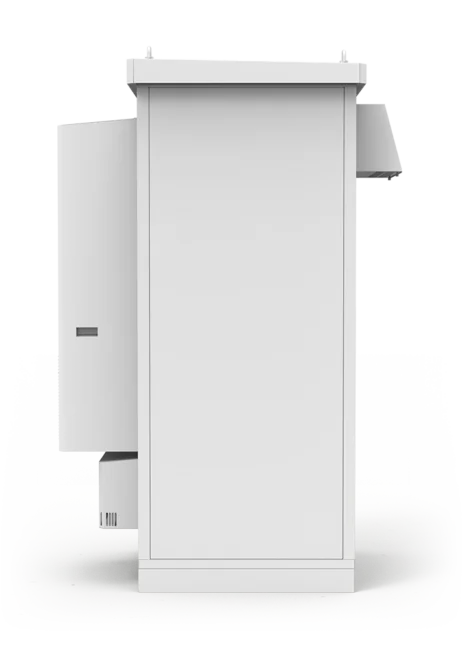

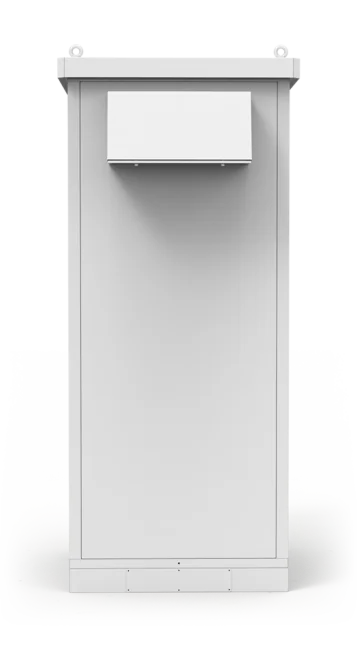

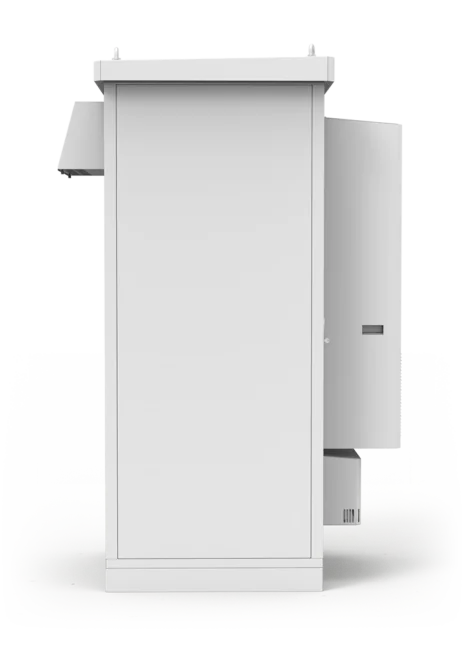

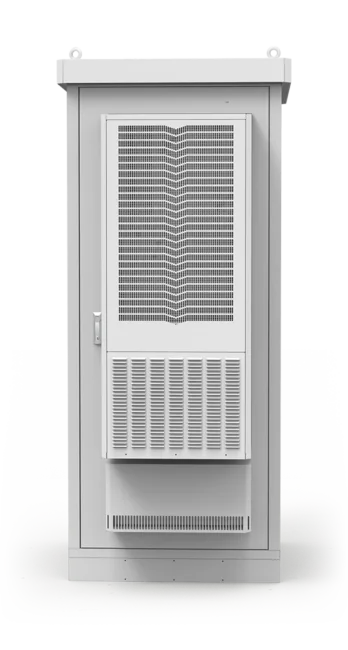

OPS Outdoor Power & Equipment Cabinet, Single-Walled​ Series

Single-walled outdoor power & equipment enclosures with multiple dimensions, number of bays, and configurations

Multiple sizes
Various configurations
3-point locking system
  • Configured for project climatic conditions w/ optimized cooling and weather protection systems
  • Rigid IP65 single-bay enclosure, standard with one front door
  • Single-walled cabinet with internal wall insulation, with solar shielding roof and plinth
  • 3-point locking system and concealed hinge
  • Size variants to suit every need, 12-48U (30+ models)
  • Aluzinc Steel
  • Powder-coated in RAL 9016
  • Free-standing
  • Pre-installed cooling systems
  • Door alarm kit
  • IP65
  • CE, UL/cUL
  • RoHs/REACH/CLP
  • Telcordia GR-487 capable
  • Configured for project climatic conditions w/ optimized cooling and weather protection systems
  • Rigid IP65 single-bay enclosure, standard with one front door
  • Single-walled cabinet with internal wall insulation, with solar shielding roof and plinth
  • 3-point locking system and concealed hinge
  • Size variants to suit every need, 12-48U (30+ models)
  • Aluzinc Steel
  • Powder-coated in RAL 9016
  • Free-standing
  • Pre-installed cooling systems
  • Door alarm kit
  • IP65
  • CE, UL/cUL
  • RoHs/REACH/CLP
  • Telcordia GR-487 capable
Multiple sizes
Various configurations
3-point locking system

Filters

Measurement system:

Products within the series

0 product(s) matching your selection

Product Rack space Rack type Width Height Depth Material Std. color
OPS 15-1, 500 x 550, PM6U19"500 mm19.68 in850 mm33.46 in550 mm21.65 inAluminumRAL 9016
OPS 12-1, 600 x 600, PM12U19"600 mm23.62 in750 mm29.52 in600 mm23.62 inAluminumRAL 9016
OPS 16-1, 600 x 600, PM16U19"600 mm23.62 in900 mm35.43 in600 mm23.62 inAluminumRAL 9016
OPS 20-1, 600 x 600, PM20U19"600 mm23.62 in1100 mm43.3 in600 mm23.62 inAluminumRAL 9016
OPS 16-1, 600 x 600, FS16U19"600 mm23.62 in1000 mm39.37 in600 mm23.62 inAluzinc SteelRAL 9016
OPS 12-1, 600 x 600, FS12U19"600 mm23.62 in850 mm33.46 in600 mm23.62 inAluzinc SteelRAL 9016
OPS 20-1, 700 x 800, FS20U19"700 mm27.55 in1200 mm47.24 in800 mm31.49 inAluzinc SteelRAL 9016
OPS 24-1, 700 x 800, FS24U19"700 mm27.55 in1400 mm55.11 in800 mm31.49 inAluzinc SteelRAL 9016
OPS 30-1, 700 x 800, FS30U19"700 mm27.55 in1650 mm64.96 in800 mm31.49 inAluzinc SteelRAL 9016
OPS 35-1, 700 x 800, FS35U19"700 mm27.55 in1850 mm72.83 in800 mm31.49 inAluzinc SteelRAL 9016
OPS 40-1, 700 x 800, FS40U19"700 mm27.55 in2050 mm80.7 in800 mm31.49 inAluzinc SteelRAL 9016
OPS 30-1, 900 x 900, FS30U19" / 21" / 23"900 mm35.43 in1650 mm64.96 in900 mm35.43 inAluzinc SteelRAL 9016
OPS 35-1, 900 x 900, FS35U19" / 21" / 23"900 mm35.43 in1850 mm72.83 in900 mm35.43 inAluzinc SteelRAL 9016
OPS 40-1, 900 x 900, FS40U19" / 21" / 23"900 mm35.43 in2050 mm80.7 in900 mm35.43 inAluzinc SteelRAL 9016
OPS 40-1, 900 x 1050, FS2 x 40U19" / 21" / 23"900 mm35.43 in2050 mm80.7 in1050 mm41.33 inAluzinc SteelRAL 9016
OPS 43-1, 900 x 900, FS43U19" / 21" / 23"900 mm35.43 in2200 mm86.61 in900 mm35.43 inAluzinc SteelRAL 9016
OPS 43-1, 900 x 1050, FS2 x 43U19" / 21" / 23"900 mm35.43 in2200 mm86.61 in1050 mm41.33 inAluzinc SteelRAL 9016
OPS 48-1, 900 x 900, FS48U19" / 21" / 23"900 mm35.43 in2400 mm94.48 in900 mm35.43 inAluzinc SteelRAL 9016
OPS 48-1, 900 x 1050, FS2 x 48U19" / 21" / 23"900 mm35.43 in2400 mm94.48 in1050 mm41.33 inAluzinc SteelRAL 9016
OPS 48-C1, 800 x 800, FS48U19"800 mm31.49 in2400 mm94.48 in800 mm31.49 inAluzinc SteelRAL 9016
OPS 48-C2, 1200 x 800, FS2 x 48U19"1200 mm47.24 in2400 mm94.48 in800 mm31.49 inAluzinc SteelRAL 9016
OPS 30-2, 1400 x 900, FS2 x 30U19"1400 mm55.11 in1650 mm64.96 in900 mm35.43 inAluzinc SteelRAL 9016
OPS 35-2, 1400 x 900, FS2 x 35U19"1400 mm55.11 in1850 mm72.83 in900 mm35.43 inAluzinc SteelRAL 9016
OPS 35-2, 1800 x 900, FS2 x 35U19" / 21" / 23"1800 mm70.86 in1850 mm72.83 in900 mm35.43 inAluzinc SteelRAL 9016
OPS 40-2, 1800 x 900, FS2 x 40U19" / 21" / 23"1800 mm70.86 in2050 mm80.7 in900 mm35.43 inAluzinc SteelRAL 9016
OPS 43-2, 1800 x 900, FS2 x 43U19" / 21" / 23"1800 mm70.86 in2200 mm86.61 in900 mm35.43 inAluzinc SteelRAL 9016
OPS 48-2, 1800 x 900, FS2 x 48U19" / 21" / 23"1800 mm70.86 in2400 mm94.48 in900 mm35.43 inAluzinc SteelRAL 9016
