VAS Split Series

Split unit precision air conditioners, AC- and DC-powered

Full DC model with precision temperature control
Advanced controls
Designed for energy efficiency
  • Models in DC and AC/DC
  • Cooling performance range: 3,500-10,600W
  • High-efficient with advanced control and cooling performance regulation
  • Designed for cyclic off-grid application w. battery power backup
  • Redundancy functionality for 2 units operation
  • Designed for rooms with sensitive electronics that need strict thermal control
  • Low starting current with soft ramp-up and –down functionality for smooth operation
  • Aluzinc Steel
  • Powder-coated in RAL 9016
  • Split-unit concept
  • Washable filter in indoor unit
  • User-friendly assembly and maintenance
  • IP55 (IEC60529)
  • CE, UL/cUL
  • RoHs/REACH/CLP
  • Telcordia GR-487 capable
  • Models in DC and AC/DC
  • Cooling performance range: 3,500-10,600W
  • High-efficient with advanced control and cooling performance regulation
  • Designed for cyclic off-grid application w. battery power backup
  • Redundancy functionality for 2 units operation
  • Designed for rooms with sensitive electronics that need strict thermal control
  • Low starting current with soft ramp-up and –down functionality for smooth operation
  • Aluzinc Steel
  • Powder-coated in RAL 9016
  • Split-unit concept
  • Washable filter in indoor unit
  • User-friendly assembly and maintenance
  • IP55 (IEC60529)
  • CE, UL/cUL
  • RoHs/REACH/CLP
  • Telcordia GR-487 capable
Full DC model with precision temperature control
Advanced controls
Designed for energy efficiency

Filters

Measurement system:

Products within the series

0 product(s) matching your selection

Clear filters

ProductCooling capacityVoltageWidthHeightDepthRefrigerantMaterial
VAS 3500 DC Split D33500 W11942.49 BTU/H48V DC1000/800 mm39.37/31.49 in1000/600 mm39.37/23.62 in280/330 mm11.02/12.99 inR134aAluzinc Steel
VAS 5000 DC Split D35000 W17060.7 BTU/H48V DC1000/900 mm39.37/35.43 in1000/684 mm39.37/26.92 in280/330 mm11.02/12.99 inR134aAluzinc Steel
VAS 7000 DC Split D37000 W23884.99 BTU/H48V DC950/905 mm37.4/35.62 in950/934 mm37.4/36.77 in300/380 mm11.81/14.96 inR134aAluzinc Steel
VAS 3500 AD Split A2D33500 W11942.49 BTU/H1 x 230 V / 48 V AC/DC900/960 mm35.43/37.79 in900/588 mm35.43/23.14 in200/380 mm7.87/14.96 inR410aAluzinc Steel
VAS 5000 AD Split A2D35000 W17060.7 BTU/H1 x 230 V / 48 V AC/DC905/860 mm35.62/33.85 in905/620 mm35.62/24.4 in205/322 mm8.07/12.67 inR410aAluzinc Steel
VAS 7000 AD Split A2D37000 W23884.99 BTU/H1 x 230 V / 48 V AC/DC1100/1000 mm43.3/39.37 in1100/1250 mm43.3/49.21 in1000/460 mm39.37/18.11 inR410aAluzinc Steel
VAS 10600 AD Split A2D310600 W36168.7 BTU/H1 x 230 V / 48 V AC/DC1100/1000 mm43.3/39.37 in1100/1250 mm43.3/49.21 in1000/460 mm39.37/18.11 inR410aAluzinc Steel

Ready to order?

We can customize all our products to meet your needs. Write us a message and let's get started.

Get in touch

Other air conditioner series

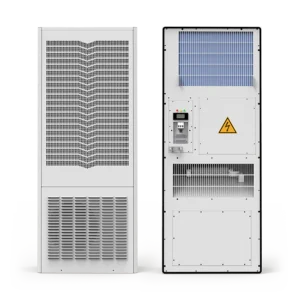

VAK Slim BABAA compliant
