    ACDBs
    Series

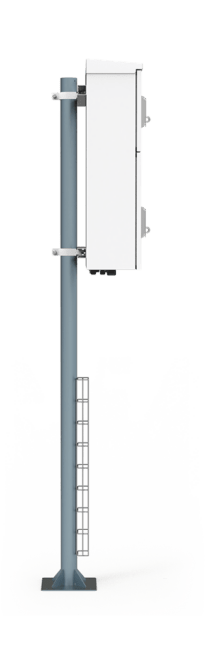

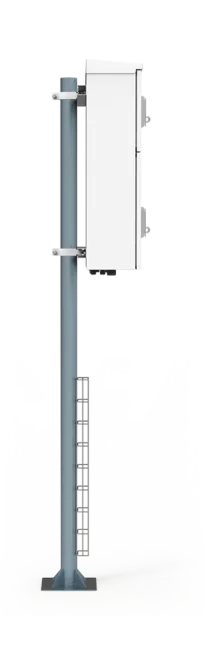

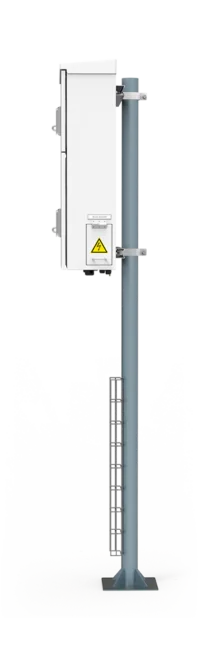

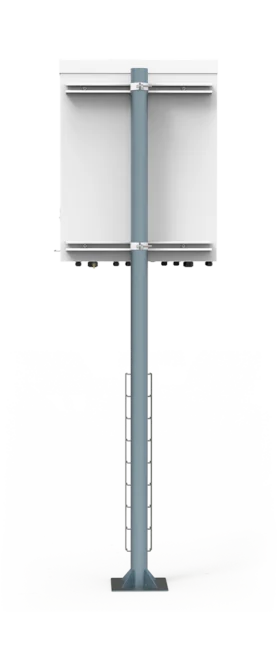

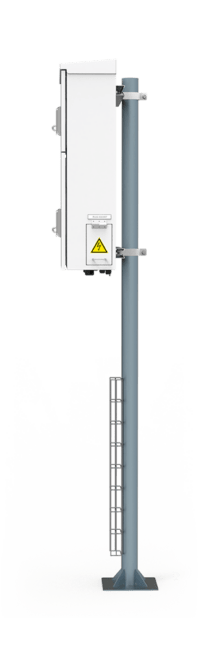

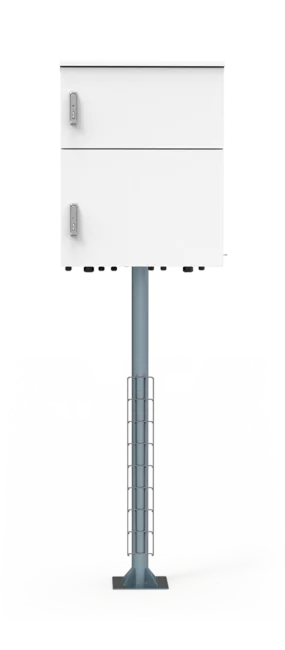

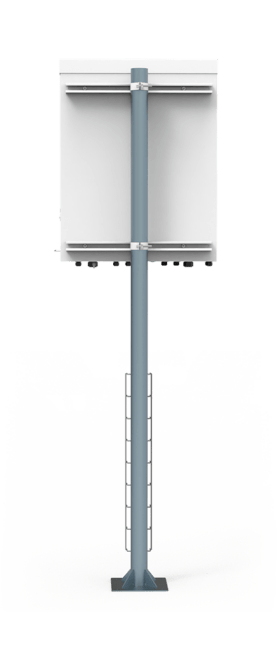

    AC distribution boards with multiple configuration options and features available

    • The AC distribution boards are integrated based on project specific requirements with switchgear, surge protection, energy meters and functionality.
    • Available in various configurations and with optional features
    • Single or multiple loads and tenants
    • Standard models in 40A, 63A, 80A
    • 1 – 2 Compartments
    • Designed for demanding environments
    • Aluzinc Steel
    • Powder-coated in RAL 9016
    • Doors with concealed hinges
    • 1-3 point stainless steel lock – 90˚ swing handle
    • Stainless steel
    • IP65
    • CE, UL/cUL
    • RoHs/REACH/CLP
    • Telcordia GR-487 capable
    • The AC distribution boards are integrated based on project specific requirements with switchgear, surge protection, energy meters and functionality.
    • Available in various configurations and with optional features
    • Single or multiple loads and tenants
    • Standard models in 40A, 63A, 80A
    • 1 – 2 Compartments
    • Designed for demanding environments
    • Aluzinc Steel
    • Powder-coated in RAL 9016
    • Doors with concealed hinges
    • 1-3 point stainless steel lock – 90˚ swing handle
    • Stainless steel
    • IP65
    • CE, UL/cUL
    • RoHs/REACH/CLP
    • Telcordia GR-487 capable
    Request a quote

    Products within the series

    Product filters

    Product filters

    Clear filters

    0 product(s) matching your selection

    Clear filters

    ProductRated powerMountingWidthHeightDepthMaterialStd. color
    AC Distribution Board, 40A40A, 3 x 380VACWall/pole mounted350 mm13.8 in400 mm15.7 in225 mm8.9 inStainless SteelRAL 9016
    AC Distribution Board, 63A63A, 3 x 380VACWall/pole mounted350 mm13.8 in400 mm15.7 in225 mm8.9 inStainless SteelRAL 9016
    AC Distribution Board, 80A80A, 3 x 380VACWall/pole mounted400 mm15.7 in400 mm15.7 in225 mm8.9 inStainless SteelRAL 9016
    AC Distribution Board, 100A100A, 3 x 380VACWall/pole mounted500 mm19.7 in600 mm23.6 in200 mm7.9 inStainless SteelRAL 9016
    AC Distribution Board, 40A, 0T40A, 3 x 380VACWall/pole mounted600 mm23.6 in800 mm31.5 in220 mm8.7 inStainless SteelRAL 9016
    AC Distribution Board, 63A, 1T63A, 3 x 380VACWall/pole mounted600 mm23.6 in800 mm31.5 in220 mm8.7 inStainless SteelRAL 9016
    AC Distribution Board, 63A, 2T63A, 3 x 380VACWall/pole mounted700 mm27.6 in800 mm31.5 in220 mm8.7 inStainless SteelRAL 9016
    AC Distribution Board, 80A, 3T80A, 3 x 380VACWall/pole mounted700 mm27.6 in800 mm31.5 in220 mm8.7 inStainless SteelRAL 9016
