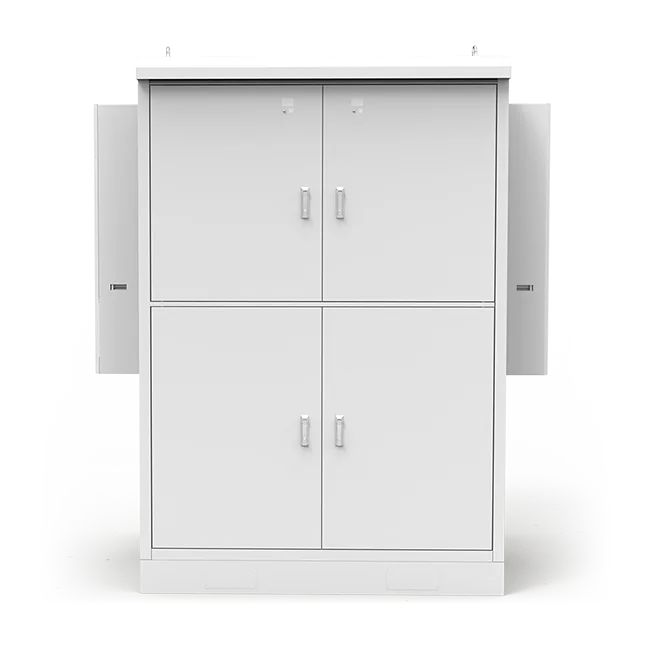

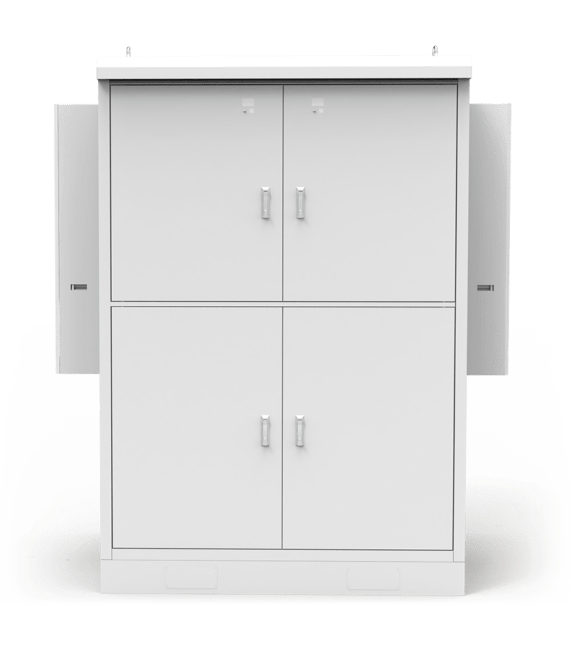

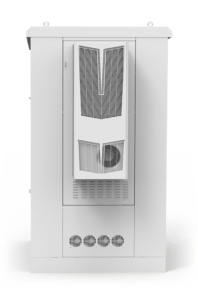

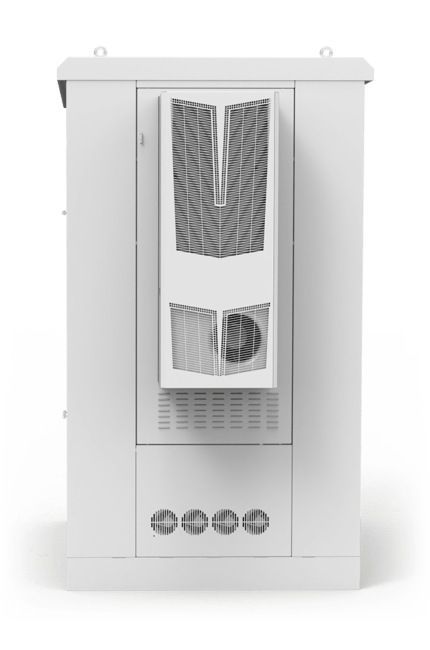

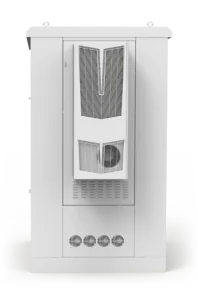

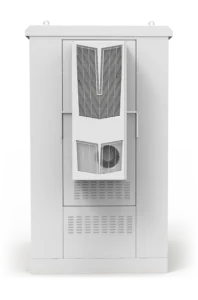

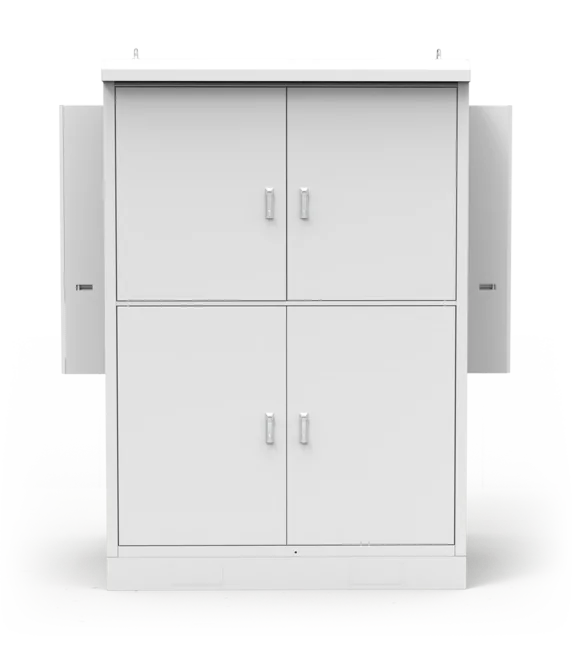

MTS Multi-Tenants Outdoor Cabinet SeriesSeriesDouble-walled multi-tenant enclosures for harsh climate conditions

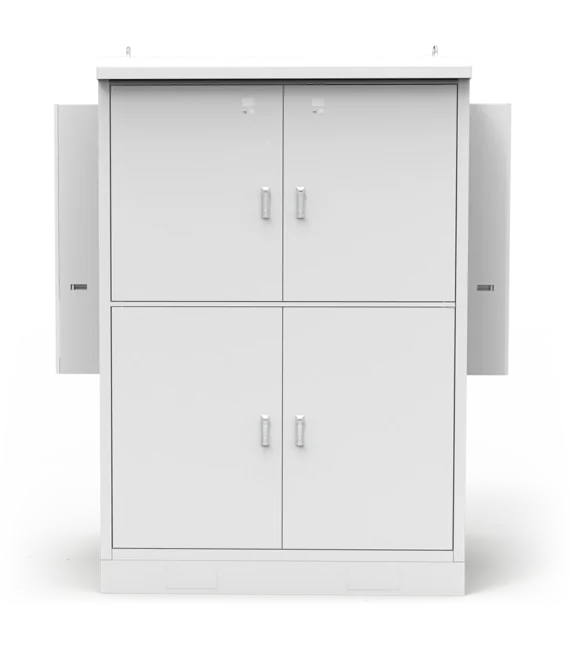

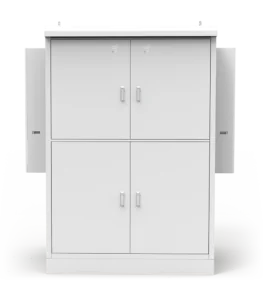

- Up to 4 tenants per cabinet
- From 10-20U per tenant (w/ individual door access)
- Increased circulation for improved cooling/heating
- Integrated cooling included

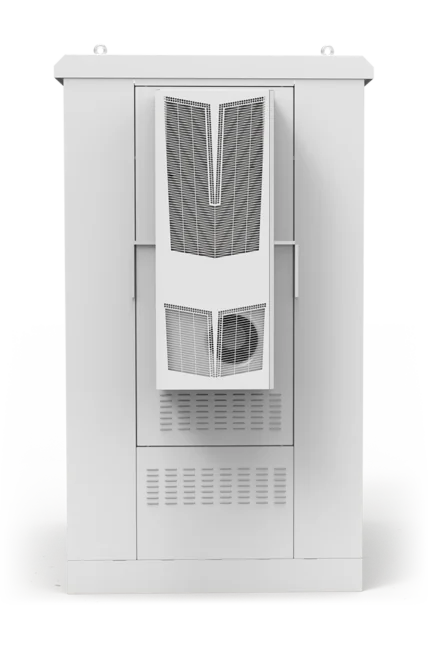

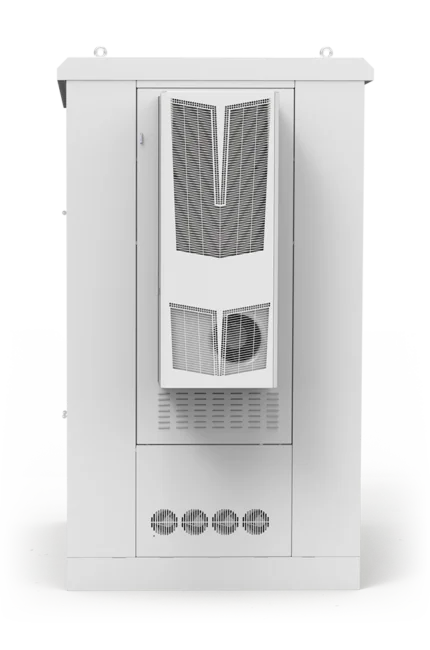

- Backup DCF cooling with air intake
- Aluzinc Steel
- Powder-coated in RAL 9016
- Integration based on project requirements
- Amb. Temp. range: -20 to +55˚C (-4 to 131˚F)
- Double-walled with 50mm foam insulation
- IP55
- CE, UL/cUL
- RoHs/REACH/CLP
- Telcordia GR-487 capable
Request a quote
Double-walled multi-tenant enclosures for harsh climate conditions
- Up to 4 tenants per cabinet
- From 10-20U per tenant (w/ individual door access)
- Increased circulation for improved cooling/heating
- Integrated cooling included
- Backup DCF cooling with air intake
- Aluzinc Steel
- Powder-coated in RAL 9016
- Integration based on project requirements
- Amb. Temp. range: -20 to +55˚C (-4 to 131˚F)
- Double-walled with 50mm foam insulation
- IP55
- CE, UL/cUL
- RoHs/REACH/CLP
- Telcordia GR-487 capable
Products within the series
Product filters
Product filters
| Product | Rack space | Rack type | Width | Height | Depth | Material | Std. color |
|---|---|---|---|---|---|---|---|
| MTS-4-10; 4 x Tenants | 4 x 10U | 19" / 21" / 23" | 900 mm35.4 in | 2200 mm86.6 in | 900 mm35.4 in | Aluzinc Steel | RAL 9016 |
| MTS-4-16-20; 4 x Tenants w. Power Section | 4 x 16U + 4 x 20U | 19" / 21" / 23" | 1600 mm63 in | 2350 mm92.5 in | 1300 mm51.2 in | Aluzinc Steel | RAL 9016 |
| MTS-1-42; 1 x Tenant | 1 x 42U | 19" / 21" / 23" | 900 mm35.4 in | 2200 mm86.6 in | 1000 mm39.4 in | Aluzinc Steel | RAL 9016 |
| MTS-2-21; 2 x Tenants | 2 x 20U | 19" / 21" / 23" | 1800 mm70.9 in | 2200 mm86.6 in | 1000 mm39.4 in | Aluzinc Steel | RAL 9016 |
| MTS-2-42; 2 x Tenant | 2 x 42U | 19" / 21" / 23" | 900 mm35.4 in | 2200 mm86.6 in | 1000 mm39.4 in | Aluzinc Steel | RAL 9016 |
| MTS-4-21; 4 x Tenants | 4 x 20U | 19" / 21" / 23" | 1800 mm70.9 in | 2200 mm86.6 in | 1000 mm39.4 in | Aluzinc Steel | RAL 9016 |
Request a quote or technical guidance
Provide your technical requirements and our team will prepare a tailored recommendation and quotation.
Other outdoor enclosures series
OPS Outdoor Power & Equipment Cabinet, Single-Walled
Single-walled outdoor power & equipment enclosures with multiple dimensions, number of bays, and configurations

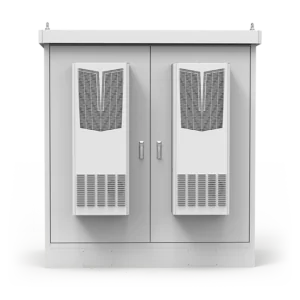

TSI Outdoor Power & Equipment Cabinet, Double-Walled
