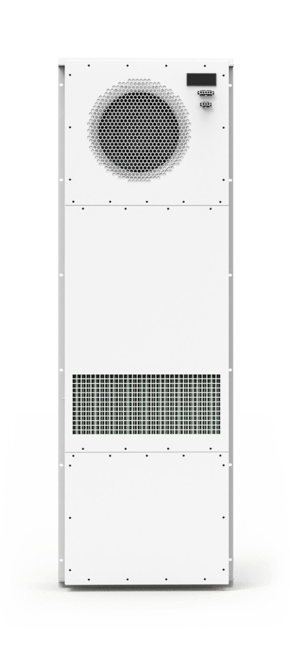

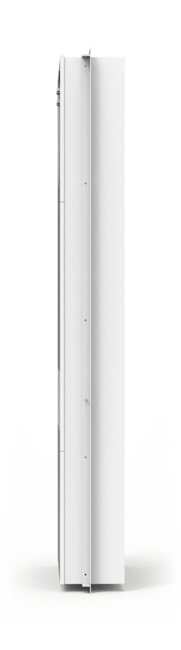

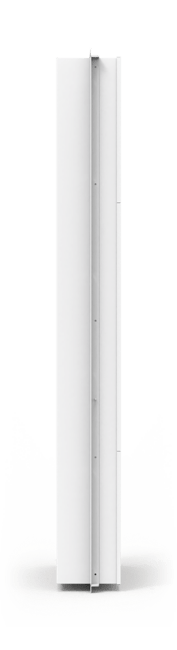

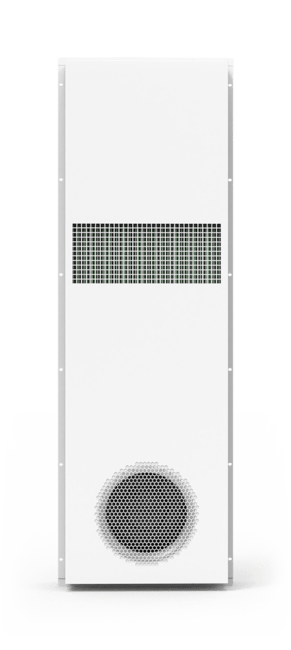

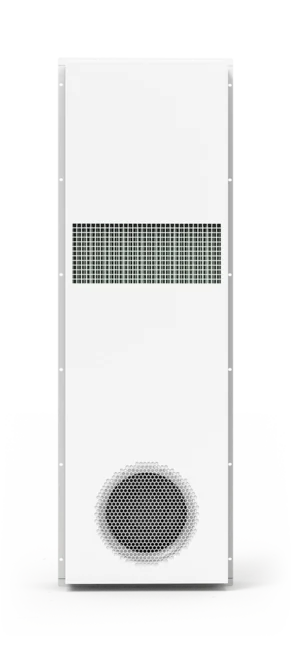

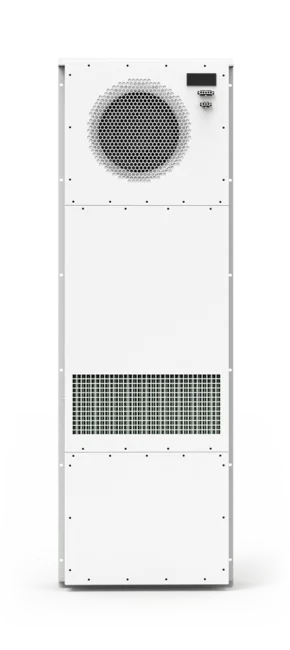

VHX Counter-FlowSeriesSlim counter flow heat exchanger with advanced controls functionality
- Models in AC and DC
- Cooling capacity range: 45-350 W/K | 25-195 W/F
- User-friendly interface w. display
- PWM control for both internal and external Fan
- Lightweight solution for effortless handling and transport
- Password protected set point adjustment
- Aluzinc Steel
- Powder-coated in RAL 9016
- Power input Reverse protection
- Alarm output
- Designed for enclosures with sensitive electronics that need strict thermal control
- IP65 (IEC60529)
- CE, UL/cUL
- RS485/MODBUS communication protocol
- RoHs/REACH/CLP
- Telcordia GR-487 capable
Request a quote
Slim counter flow heat exchanger with advanced controls functionality
- Models in AC and DC
- Cooling capacity range: 45-350 W/K | 25-195 W/F
- User-friendly interface w. display
- PWM control for both internal and external Fan
- Lightweight solution for effortless handling and transport
- Password protected set point adjustment
- Aluzinc Steel
- Powder-coated in RAL 9016
- Power input Reverse protection
- Alarm output
- Designed for enclosures with sensitive electronics that need strict thermal control
- IP65 (IEC60529)
- CE, UL/cUL
- RS485/MODBUS communication protocol
- RoHs/REACH/CLP
- Telcordia GR-487 capable
Products within the series
Product filters
Product filters
| Product | Cooling capacity | Voltage | Width | Height | Depth | Material |
|---|---|---|---|---|---|---|
| VHX 045 DC Slim D3 | 45 W/K25 W/F | 48V DC | 330 mm13 in | 700 mm27.6 in | 100 mm3.9 in | Aluzinc Steel |
| VHX 065 DC Slim D3 | 65 W/K36.1 W/F | 48V DC | 373 mm14.7 in | 920 mm36.2 in | 188 mm7.4 in | AluZinc Steel |
| VHX 110 DC Slim D3 | 110 W/K61.1 W/F | 48V DC | 423 mm16.7 in | 1120 mm44.1 in | 188 mm7.4 in | Aluzinc Steel |
| VHX 150 DC Slim D3 | 150 W/K83.3 W/F | 48V DC | 503 mm19.8 in | 1150 mm45.3 in | 237 mm9.3 in | AluZinc Steel |
| VHX 220 DC Slim D3 | 220 W/K122.2 W/F | 48V DC | 613 mm24.1 in | 1600 mm63 in | 263 mm10.4 in | Aluzinc Steel |
| VHX 045 AC Slim A1 | 45 W/K25 W/F | 1 x 115V AC | 330 mm13 in | 700 mm27.6 in | 100 mm3.9 in | AluZinc Steel |
| VHX 045 AC Slim A2 | 45 W/K25 W/F | 1 x 230V AC | 330 mm13 in | 700 mm27.6 in | 100 mm3.9 in | Aluzinc Steel |
| VHX 065 AC Slim A1 | 65 W/K36.1 W/F | 1 x 115V AC | 373 mm14.7 in | 920 mm36.2 in | 188 mm7.4 in | Aluzinc Steel |
| VHX 065 AC Slim A2 | 65 W/K36.1 W/F | 1 x 230V AC | 373 mm14.7 in | 920 mm36.2 in | 188 mm7.4 in | Aluzinc Steel |
| VHX 110 AC Slim A1 | 110 W/K61.1 W/F | 1 x 115V AC | 423 mm16.7 in | 1120 mm44.1 in | 188 mm7.4 in | Aluzinc Steel |
| VHX 110 AC Slim A2 | 110 W/K61.1 W/F | 1 x 230V AC | 423 mm16.7 in | 1120 mm44.1 in | 188 mm7.4 in | Aluzinc Steel |
| VHX 150 AC Slim A1 | 150 W/K83.3 W/F | 1 x 115V AC | 503 mm19.8 in | 1150 mm45.3 in | 237 mm9.3 in | Aluzinc Steel |
| VHX 150 AC Slim A2 | 150 W/K83.3 W/F | 1 x 230V AC | 503 mm19.8 in | 1150 mm45.3 in | 237 mm9.3 in | Aluzinc Steel |
| VHX 220 AC Slim A1 | 220 W/K122.2 W/F | 1 x 115V AC | 613 mm24.1 in | 1600 mm63 in | 263 mm10.4 in | Aluzinc Steel |
| VHX 220 AC Slim A2 | 220 W/K122.2 W/F | 1 x 230V AC | 613 mm24.1 in | 1600 mm63 in | 263 mm10.4 in | Aluzinc Steel |
| VHX 150 DC SlimX D3 | 150 W/K83.3 W/F | 48V DC | 500 mm19.7 in | 1700 mm66.9 in | 270 mm10.6 in | Aluzinc Steel |
| VHX 350 DC SlimX D3 | 350 W/K194.4 W/F | 48V DC | 800 mm31.5 in | 1700 mm66.9 in | 270 mm10.6 in | Aluzinc Steel |
| VHX 150 AC SlimX A1 | 150 W/K83.3 W/F | 1 x 115V AC | 500 mm19.7 in | 1700 mm66.9 in | 270 mm10.6 in | Aluzinc Steel |
| VHX 150 AC SlimX A2 | 150 W/K83.3 W/F | 1 x 230V AC | 500 mm19.7 in | 1700 mm66.9 in | 270 mm10.6 in | Aluzinc Steel |
| VHX 350 AC SlimX A1 | 350 W/K194.4 W/F | 1 x 115V AC | 800 mm31.5 in | 1700 mm66.9 in | 270 mm10.6 in | Aluzinc Steel |
| VHX 350 AC SlimX A2 | 350 W/K194.4 W/F | 1 x 230V AC | 800 mm31.5 in | 1700 mm66.9 in | 270 mm10.6 in | Aluzinc Steel |
