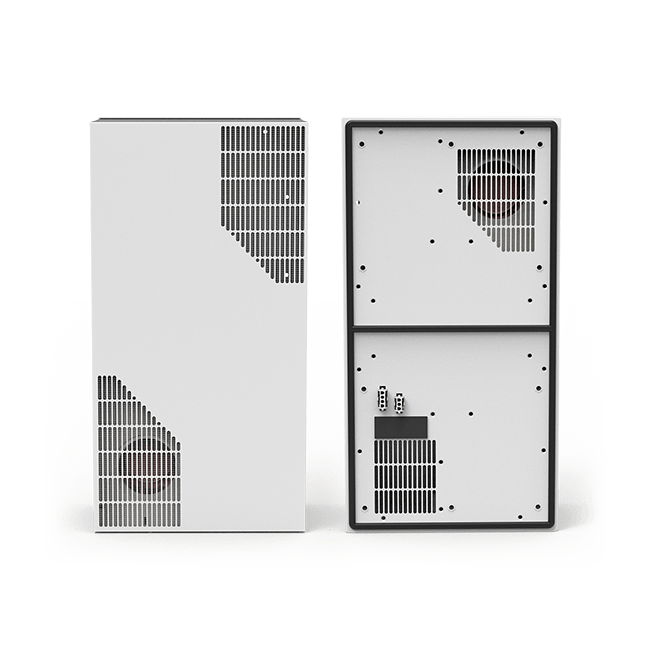

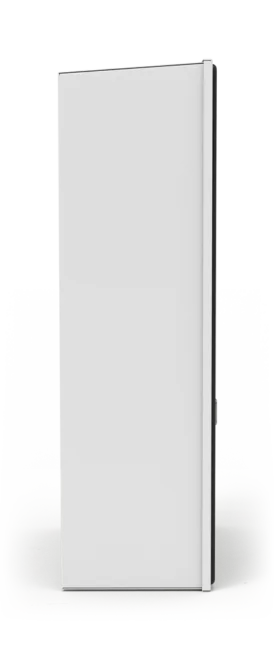

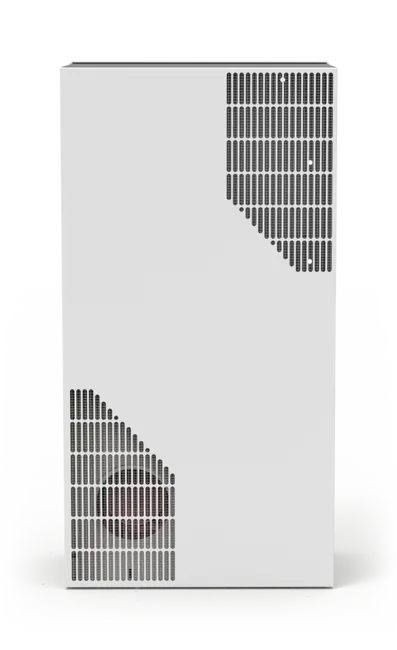

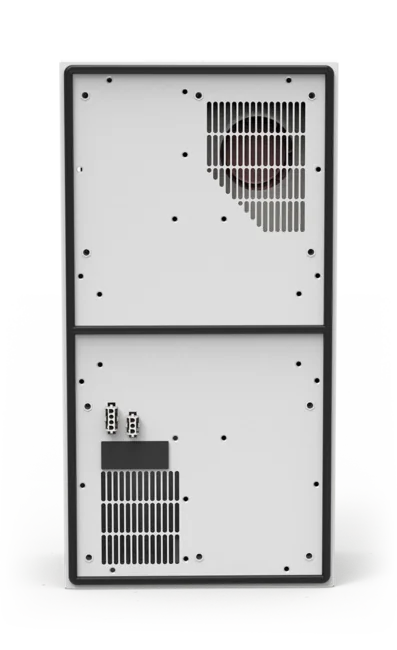

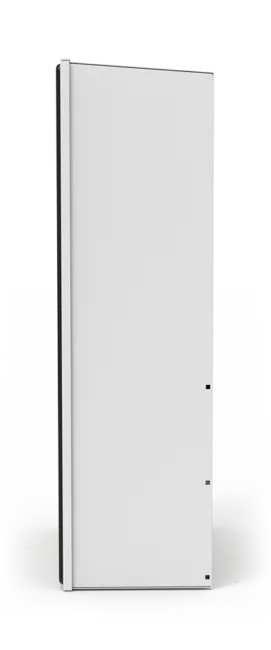

VHC Cross-Flow Series

Slim cross flow heat exchanger with advanced controls functionality

Crossflow Heat Exchanger
Advanced controls
Compact product dimensions
  • Models in AC and DC
  • Cooling performing range: 30-150 W/K / 17-83 W/F
  • Equipped with advanced controller platform
  • Closed loop heat exchangers
  • Temperature range: -40 to +55 ˚C / -40 to +131 ˚F
  • Aluzinc Steel
  • Powder-coated in RAL 9016
  • Epoxy coated heat exchanger core
  • External mounting
  • Multiple options and configurations available
  • IP65 (IEC60529)
  • RoHs/REACH/CLP
  • Shock and Vibration capable ISTA-3B
  • Fire resistance UL 94V
  • Telcordia GR-487 capable
  • Models in AC and DC
  • Cooling performing range: 30-150 W/K / 17-83 W/F
  • Equipped with advanced controller platform
  • Closed loop heat exchangers
  • Temperature range: -40 to +55 ˚C / -40 to +131 ˚F
  • Aluzinc Steel
  • Powder-coated in RAL 9016
  • Epoxy coated heat exchanger core
  • External mounting
  • Multiple options and configurations available
  • IP65 (IEC60529)
  • RoHs/REACH/CLP
  • Shock and Vibration capable ISTA-3B
  • Fire resistance UL 94V
  • Telcordia GR-487 capable
Crossflow Heat Exchanger
Advanced controls
Compact product dimensions

Filters

Measurement system:

Products within the series

0 product(s) matching your selection

Product Cooling capacity Voltage Width Height Depth Refrigerant Material
VHC 030 DC Slim D330 W102.36 BTU/H48V DC305 mm12 in602 mm23.7 in125 mm4.92 inAluZinc Steel
VHC 030 DC Square D330 W102.36 BTU/H48V DC457 mm17.99 in457 mm17.99 in125 mm4.92 inAluZinc Steel
VHC 040 DC Slim D340 W136.48 BTU/H48V DC305 mm12 in602 mm23.7 in170 mm6.69 inAluZinc Steel
VHC 065 DC Slim D365 W221.78 BTU/H48V DC455 mm17.91 in760 mm29.92 in170 mm6.69 inAluZinc Steel
VHC 100 DC Slim D3100 W341.21 BTU/H48V DC455 mm17.91 in760 mm29.92 in220 mm8.66 inAluZinc Steel
VHC 150 DC Slim D3150 W511.82 BTU/H48V DC455 mm17.91 in760 mm29.92 in320 mm12.59 inAluZinc Steel
VHC 030 AC Slim A130 W102.36 BTU/H1 x 115V AC305 mm12 in602 mm23.7 in125 mm4.92 inAluZinc Steel
VHC 030 AC Slim A230 W102.36 BTU/H1 x 230V AC305 mm12 in602 mm23.7 in125 mm4.92 inAluZinc Steel
VHC 040 AC Slim A140 W136.48 BTU/H1 x 115V AC305 mm12 in602 mm23.7 in170 mm6.69 inAluZinc Steel
VHC 040 AC Slim A240 W136.48 BTU/H1 x 230V AC305 mm12 in602 mm23.7 in170 mm6.69 inAluZinc Steel
VHC 065 AC Slim A165 W221.78 BTU/H1 x 115V AC455 mm17.91 in760 mm29.92 in170 mm6.69 inAluZinc Steel
VHC 065 AC Slim A265 W221.78 BTU/H1 x 230V AC455 mm17.91 in760 mm29.92 in170 mm6.69 inAluZinc Steel
VHC 100 AC Slim A1100 W341.21 BTU/H1 x 115V AC455 mm17.91 in760 mm29.92 in220 mm8.66 inAluZinc Steel
VHC 100 AC Slim A2100 W341.21 BTU/H1 x 230V AC455 mm17.91 in760 mm29.92 in220 mm8.66 inAluZinc Steel
VHC 150 AC Slim A1150 W511.82 BTU/H1 x 115V AC455 mm17.91 in760 mm29.92 in320 mm12.59 inAluZinc Steel
VHC 150 AC Slim A2150 W511.82 BTU/H1 x 230V AC455 mm17.91 in760 mm29.92 in320 mm12.59 inAluZinc Steel
