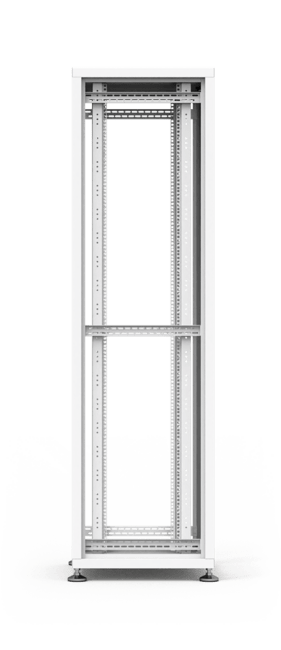

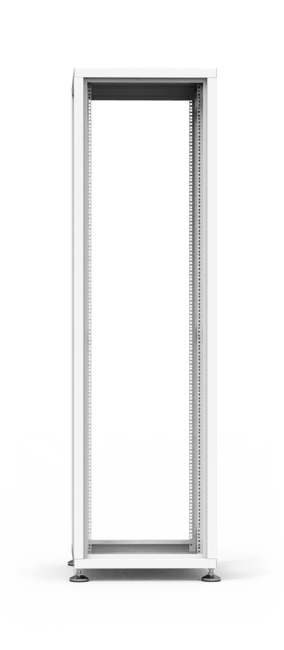

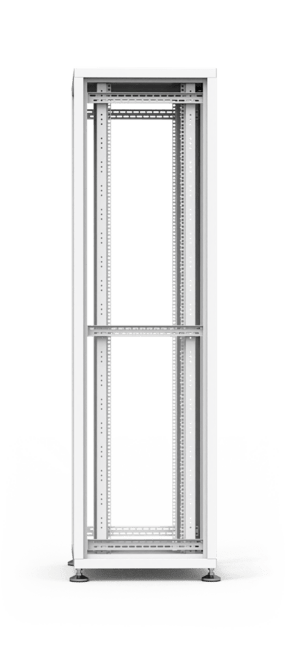

VRF Rack-FrameSeries
The VRF series consists of robust indoor equipment rack-frames designed for IT infrastructure, edge data centers, network rooms, and server environments. Built from fully bonded Aluzinc steel, VRF rack-frames combine high load capacity, flexible rack widths, and unobstructed access to equipment and cabling from all sides.
- Heavy-duty open-frame design
- Up to 1,200 kg load capacity
- Standard 19-inch rack compatibility
- Optional 21-inch and 23-inch rack configurations
- Unobstructed access from all sides
- Supports multi-rack installations
- IT infrastructure
- Edge data centers
- Network rooms
- Server rooms
- E-houses
- Fiber huts
- Adjustable front and rear mounting rails support flexible equipment positioning
- EIA universal hole progression supports standardized equipment mounting
- Open-frame construction provides unrestricted equipment and cable access
- Side-by-side baying supports scalable multi-rack configurations
- Integrated floor-fixing points provide secure installation
- Cross-beams marked every 1/2 inch support precise mounting rail alignment
- Weld-nut construction simplifies on-site assembly using minimal tooling
- Installation type: Floor-standing, open-frame rack
- Rack width: 19-inch standard
- Optional rack widths: 21-inch and 23-inch
- Rack heights: 20U, 28U, 35U, 42U, and 45U
- Maximum load capacity: 1,200 kg / 2,645 lb
- Frame material: Fully bonded Aluzinc steel
- Surface finish: Powder-coated, RAL 9005 low-gloss
- Mounting rails: Independent adjustable front and rear rails
- Floor mounting: Four fixing points integrated into the base
- Shipping format: Flat-pack
- Assembly: On-site
- EIA / ECA-310E
- EN 62208
- EN 62368
- Seismic Zone 2
- CE
- RoHS / REACH / CLP
Products within the series
Product filters
Product filters
| Product | Rack space | Rack type | Width | Height | Depth | Material | Std. color |
|---|---|---|---|---|---|---|---|
| VRF-28, 600 x 600 pdf | 28U | 19" | 600 mm23.6 in | 1500 mm59.1 in | 600 mm23.6 in | AluZinc Steel | RAL 9005 |
| VRF-35, 600 x 600 pdf | 35U | 19" | 600 mm23.6 in | 1800 mm70.9 in | 600 mm23.6 in | AluZinc Steel | RAL 9005 |
| VRF-42, 600 x 600 pdf | 42U | 19" | 600 mm23.6 in | 2100 mm82.7 in | 600 mm23.6 in | AluZinc Steel | RAL 9005 |
| VRF-45, 600 x 600 pdf | 45U | 19" | 600 mm23.6 in | 2150 mm84.6 in | 600 mm23.6 in | AluZinc Steel | RAL 9005 |
| VRF-28, 800 x 600 pdf | 28U | 23" | 800 mm31.5 in | 1500 mm59.1 in | 600 mm23.6 in | AluZinc Steel | RAL 9005 |
| VRF-35, 800 x 600 pdf | 35U | 23" | 800 mm31.5 in | 1800 mm70.9 in | 600 mm23.6 in | AluZinc Steel | RAL 9005 |
| VRF-42, 800 x 600 pdf | 42U | 23" | 800 mm31.5 in | 2100 mm82.7 in | 600 mm23.6 in | AluZinc Steel | RAL 9005 |
| VRF-45, 800 x 600 pdf | 45U | 23" | 800 mm31.5 in | 2150 mm84.6 in | 600 mm23.6 in | AluZinc Steel | RAL 9005 |
