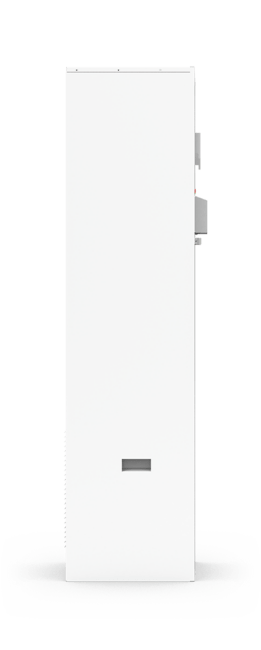

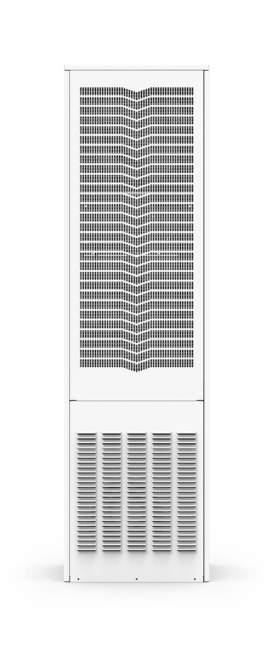

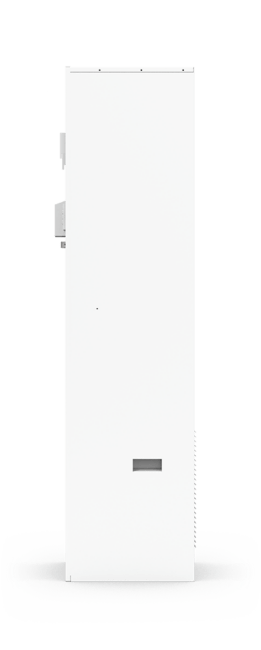

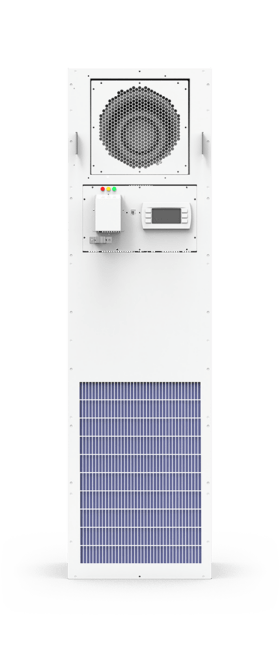

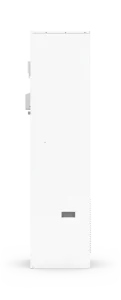

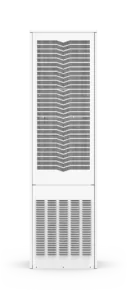

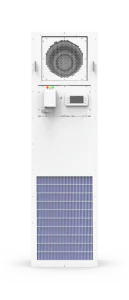

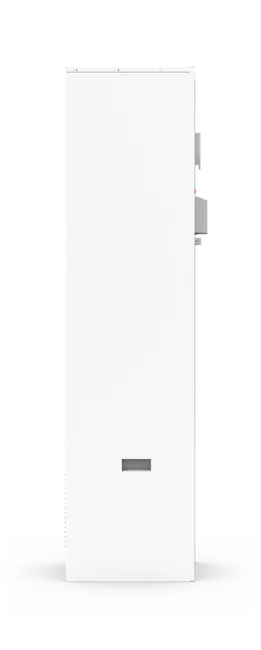

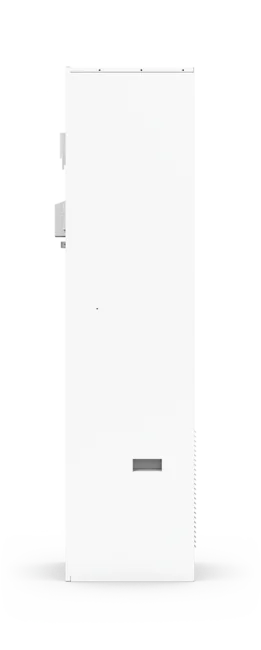

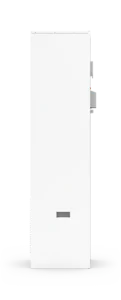

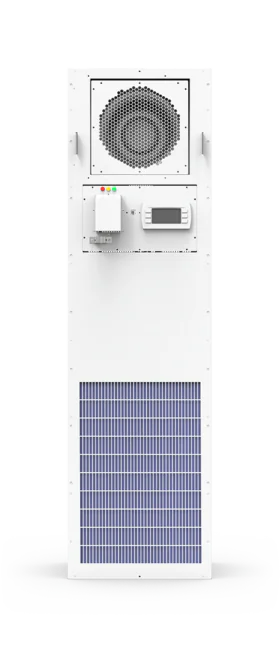

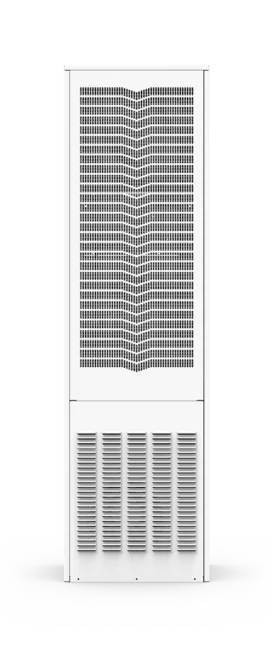

VAX Narrow

Series

• Narrow panel-mounted air conditioner with integrated heat exchanger functionality
• AC, DC, and dual-feed AC/DC power configurations
• Cooling performance range from 1,500 W to 6,000 W
• Optimized footprint for direct mounting on modular rack enclosures, including Vikinor EEM cabinets
• Designed for high-density micro data center and telecom applications
• Dual-power architecture with automated safety failover
• Advanced electronic controller with user-friendly interface
• IP65, NEMA 4/4X, and Telcordia GR-487 capable

Designed for enclosures with sensitive electronics that require strict thermal control.

• Micro data center solutions
• Telecommunications equipment
• Energy storage solutions
• Security and defense systems

• Active cooling capacity regulation
• Integrated enclosure heating function and cold weather package
• Day and night mode operation
• Password-protected set point adjustment
• Redundancy functionality for two-unit operation
• Soft-starting functionality
• Automated failover from AC-driven cooling to DC-powered heat exchange
• Open-protocol communication with SNMP v2 L3 and Modbus RTU
• Integrated sensors for temperature, humidity, water detection, and door status

• Cooling performance range: 1,500 W to 6,000 W
• Power configurations: AC, DC, or dual-feed AC/DC
• Refrigerant: CFC-free R513A
• Cooling architecture: air conditioner with integrated heat exchanger functionality
• Mounting: standard outside-mounted installation
• Optional mounting: partially recessed installation
• Controller: advanced electronic controller with display interface
• Communication interface: SNMP v2 L3 and Modbus RTU

• IP65 according to IEC 60529
• CE / UL / cUL
• NEMA 4 / 4X
• RoHS / REACH / CLP compliant
• Telcordia GR-487 capable
• IEC 60335-2-40
• UL 60335-2-40
• Engineered to support stringent North American regulatory environments, including UL / ETL
