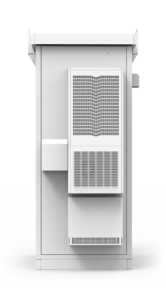

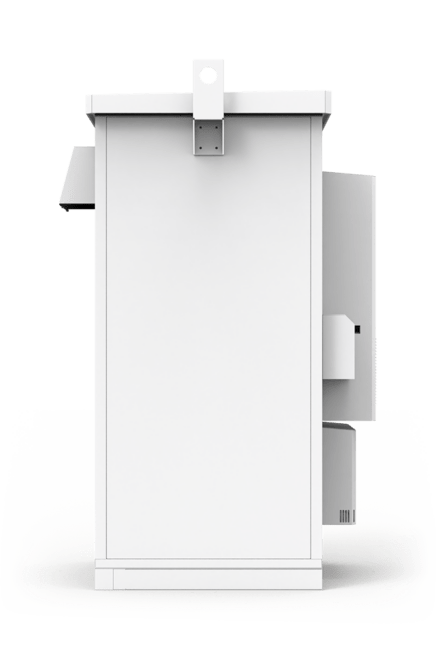

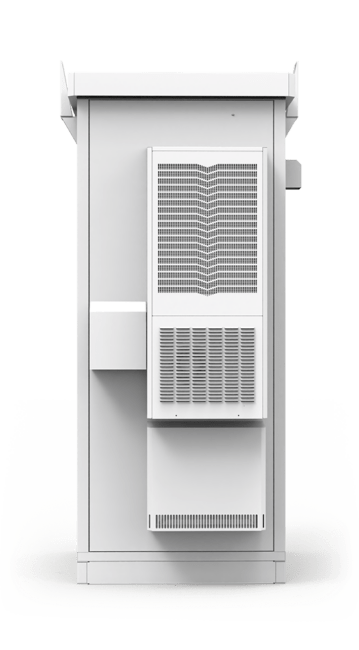

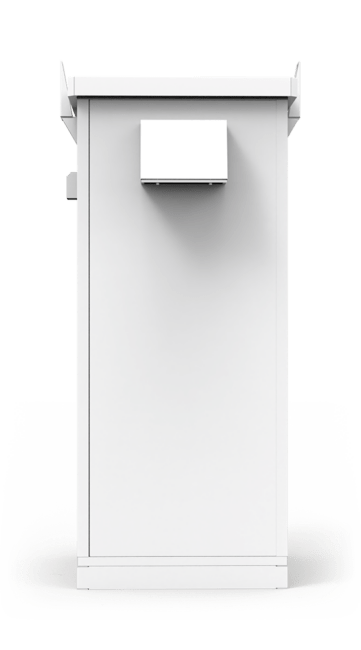

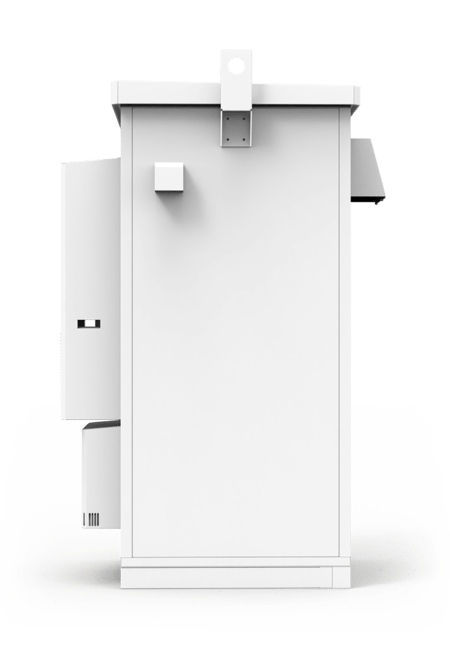

    OPS-S Outdoor Power & Equipment Cabinet, Single-Walled, Security Series
    Series

    Outdoor security enclosures for increased protection against intrusion and vandalism with multiple dimensions, number of bays, and configurations

    • Configurable for standard, medium, and high security levels
    • Field-upgradable to higher security level
    • Internal air circulation for reduced temperature variation for battery bank
    • Backup cooling system
    • Standard models as 26U, 35U, 40U and 43U
    • Aluzinc Steel
    • Powder-coated in RAL 9016
    • 6-point heavy-duty locking system
    • Internal battery protection box
    • Door lock protection cover
    • IP65
    • CE, UL/cUL
    • RoHs/REACH/CLP
    • Telcordia GR-487 capable
    • Configurable for standard, medium, and high security levels
    • Field-upgradable to higher security level
    • Internal air circulation for reduced temperature variation for battery bank
    • Backup cooling system
    • Standard models as 26U, 35U, 40U and 43U
    • Aluzinc Steel
    • Powder-coated in RAL 9016
    • 6-point heavy-duty locking system
    • Internal battery protection box
    • Door lock protection cover
    • IP65
    • CE, UL/cUL
    • RoHs/REACH/CLP
    • Telcordia GR-487 capable
    Request a quote

    Products within the series

    Product filters

    Product filters

    Clear filters

    0 product(s) matching your selection

    Clear filters

    ProductRack spaceRack typeWidthHeightDepthMaterialStd. color
    OPS 26-1-S (standard security level)2619" / 21" / 23"900 mm35.4 in1400 mm55.1 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 26-1-S (medium security level)26U19" / 21" / 23"900 mm35.4 in1400 mm55.1 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 26-1-S (high security level)26U19" / 21" / 23"900 mm35.4 in1400 mm55.1 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 35-1-S (standard security level)35U19" / 21" / 23"900 mm35.4 in1805 mm71.1 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 35-1-S (medium security level)35U19" / 21" / 23"900 mm35.4 in1805 mm71.1 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 35-1-S (high security level)35U19" / 21" / 23"900 mm35.4 in1805 mm71.1 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 40-1-S (standard security level)40U19" / 21" / 23"900 mm35.4 in2050 mm80.7 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 40-1-S (medium security level)40U19" / 21" / 23"900 mm35.4 in2050 mm80.7 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 40-1-S (high security level)40U19" / 21" / 23"900 mm35.4 in2050 mm80.7 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 43-1-S (standard security level)43U19" / 21" / 23"900 mm35.4 in2200 mm86.6 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 43-1-S (medium security level)43U19" / 21" / 23"900 mm35.4 in2200 mm86.6 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 43-1-S (high security level)43U19" / 21" / 23"900 mm35.4 in2200 mm86.6 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 35-2-S (standard security level)2 x 35U19" / 21" / 23"1600 mm63 in1805 mm71.1 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 35-2-S (medium security level)2 x 35U19" / 21" / 23"1600 mm63 in1805 mm71.1 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 35-2-S (high security level)2 x 35U19" / 21" / 23"1600 mm63 in1805 mm71.1 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 40-2-S (standard security level)2 x 40U19" / 21" / 23"1600 mm63 in2050 mm80.7 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 40-2-S (medium security level)2 x 40U19" / 21" / 23"1600 mm63 in2050 mm80.7 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 40-2-S (high security level)2 x 40U19" / 21" / 23"1600 mm63 in2050 mm80.7 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 43-2-S (standard security level)2 x 43U19" / 21" / 23"1600 mm63 in2200 mm86.6 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 43-2-S (medium security level)2 x 43U19" / 21" / 23"1600 mm63 in2200 mm86.6 in1000 mm39.4 inAluzinc SteelRAL 9016
    OPS 43-2-S (high security level)2 x 43U19" / 21" / 23"1600 mm63 in2200 mm86.6 in1000 mm39.4 inAluzinc SteelRAL 9016
