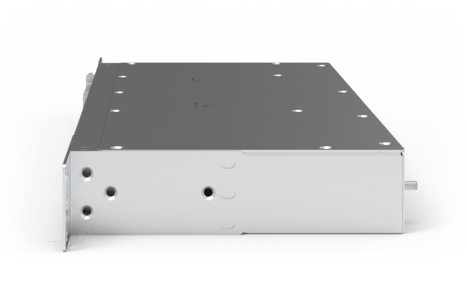

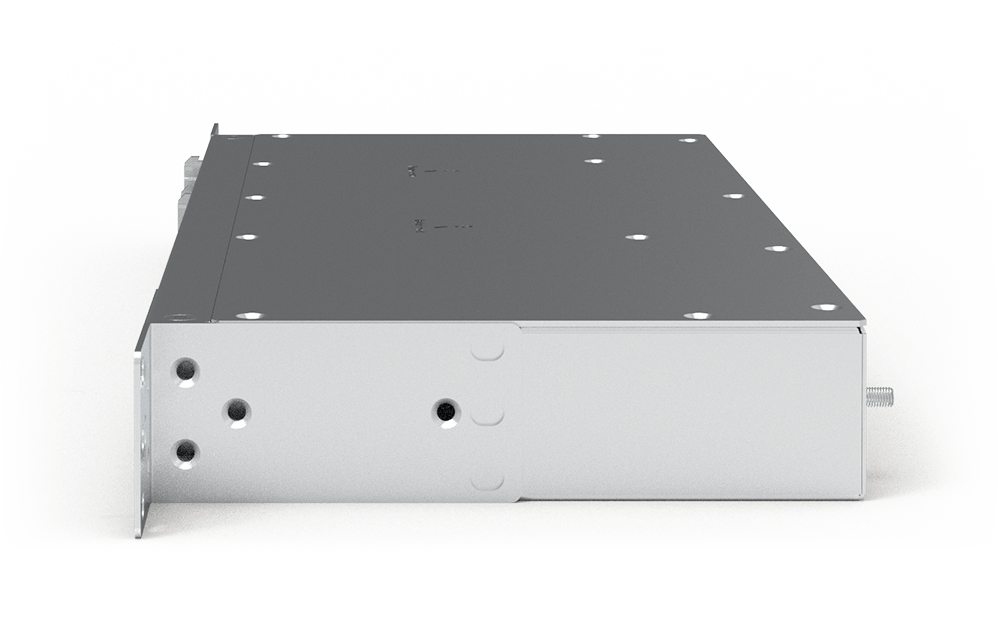

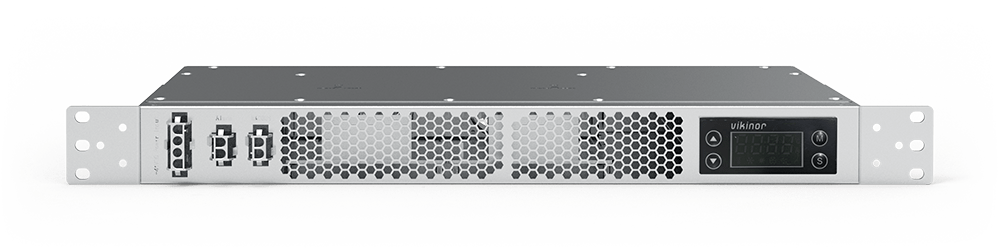

VRH Rack-Mounted heater moduleSeries
The VRH series consists of two-stage, rack-mounted heater modules designed for critical infrastructure enclosures requiring precise thermal control. Engineered as a rack-mounted cabinet heater and rack heater for enclosures, VRH units are available in 48V DC and 230V AC versions with heating capacities from 3,400 – 6,800 BTU/h | 1,000 – 2,000 W for telecom, energy, and industrial applications.
- 48V DC and 230V AC options
- 3,400 – 6,800 BTU/h | 1,000 – 2,000 W
- Rack-mounted design
- RS485 communication (Modbus)
- ETL / cETL Listed
- Telecommunications equipment
- EDGE data center installations
- Energy storage systems
- Industrial automation
- Security and defense systems
- Outdoor enclosures
- Integrated controller with display
- RS485 communication (Modbus protocol)
- Password-protected set point adjustment
- General alarm output and fan fault alarm
- Automatic power-on self-test
- 48V DC and 230V AC versions
- 3,400–6,800 BTU/h | 1,000–2,000 W
- Reduced starting current design
- Weight: 3.0 kg (6.6 lbs.)
- Aluzinc material, RAL 9016 standard
- CE
- IP20
- UL / cUL
- ETL / cETL Listed
- RoHS / REACH / CLP
Products within the series
Product filters
Product filters
| Product | Heating capacity | Voltage | Width | Height | Depth | Material |
|---|---|---|---|---|---|---|
| VRH 1000 DC Rack D3 pdf | 1000W3400 BTU/H | 48V DC | 483 mm19 in | 44 mm1.7 in | 177 mm7 in | Aluzinc Steel |
| VRH 1000 AC Rack A2 pdf | 1000W3400 BTU/H | 230V AC | 483 mm19 in | 44 mm1.7 in | 177 mm7 in | Aluzinc Steel |
| VRH 2000 AC Rack A2 pdf | 2000W6800 BTU/H | 230V AC | 483 mm19 in | 44 mm1.7 in | 177 mm7 in | Aluzinc Steel |
Request a quote or technical guidance
Provide your technical requirements and our team will prepare a tailored recommendation and quotation.
