VAE PackagedSeries
The VAE Packaged series is designed for enclosures and shelters with high-density data processing applications that require strict thermal control. With high-capacity cooling, integrated intelligent free cooling, and advanced controller functionality, VAE supports reliable temperature management for telecom, edge data center, energy storage, and industrial environments.
- Packaged air conditioner design for enclosures and shelters
- Cooling performance range from 5 kW to 35 kW | 1.5 Ton to 10 Ton
- Fully integrated intelligent free cooling system
- Environmentally friendly R513A / R454B refrigerant options
- High IP protection with NEMA 4 options available
Standard configurations are available for Edge data center and telecom applications. See the product specification sheets below for details.
Designed for enclosures and shelters with high-density data processing applications that require strict thermal control.
- Telecommunications equipment
- Edge data center solutions
- Energy storage and BESS solutions
- Industrial automation
- Security and defense systems
- Active cooling regulation with inverter-driven variable speed compressor
- Variable speed fan control for optimized airflow and energy efficiency
- Integrated intelligent free cooling system
- User-friendly digital interface with display and integrated controls
- Password-protected setpoint adjustment
- Day and night operation modes
- Configurable alarm output with automated self-test functionality
- Dedicated input and control logic for smoke detector and door contact
- Input channels for two external temperature sensors
- Cooling performance range: 5 kW to 35 kW | 1.5 Ton to 10 Ton
- Refrigerant: R513A / R454B
- Optional refrigerant: R1234yf
- Cooling architecture: packaged air conditioner with integrated free cooling
- Compressor control: inverter-driven variable speed compressor
- Fan control: variable speed fan control
- Communication interface: Modbus RTU for telecom configuration or SNMP v2 L3 for edge configuration
- Protection: high IP protection and NEMA 4 options available
- IP55 according to IEC 60529
- CE / UL / cUL
- NEMA 3R
- NEMA 4 options available
- RoHS / REACH / CLP compliant
- Telcordia GR-487 capable
Products within the series
Product filters
Product filters
| Product | Cooling capacity | Voltage | Width | Height | Depth | Refrigerant | Material |
|---|---|---|---|---|---|---|---|

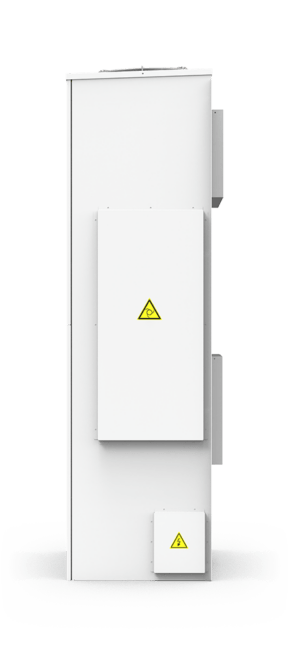

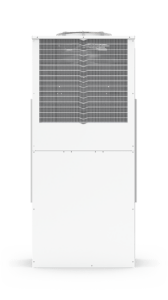

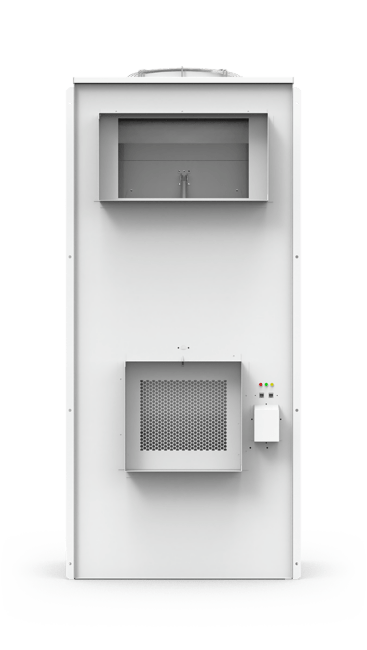

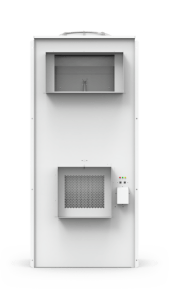

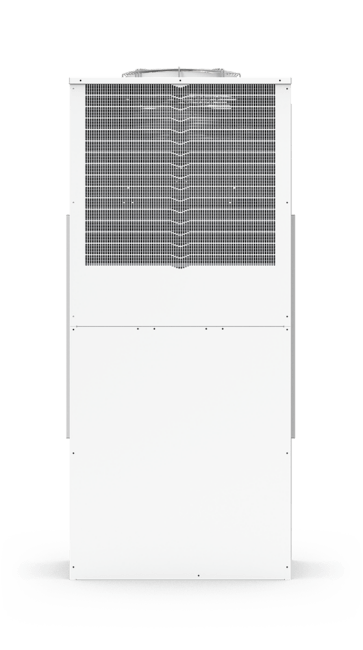

| VAE 1.5 Packaged A2 pdf | 5000W17100 BTU/H (1.5 tons) | 1x230V AC | 750 mm29.5 in | 1600 mm63 in | 450 mm17.7 in | R513a | AluZinc Steel |
| VAE 1.5 Packaged AD pdf | 5000W17100 BTU/H (1.5 tons) | 1x230V/48V AC | 750 mm29.5 in | 1600 mm63 in | 450 mm17.7 in | R513a | AluZinc Steel |
| VAE 3 Packaged A2 pdf | 10500W35800 BTU/H (3 tons) | 1x230V AC | 1067 mm42 in | 1930 mm76 in | 762 mm30 in | R454b | AluZinc Steel |
| VAE 3 Packaged AD pdf | 10500W35800 BTU/H (3 tons) | 1x230V/48V AC/DC | 1067 mm42 in | 1930 mm76 in | 762 mm30 in | R454b | AluZinc Steel |
| VAE 5 Packaged A3 pdf | 17500W59700 BTU/H (5 tons) | 3x400V AC | 1067 mm42 in | 1930 mm76 in | 762 mm30 in | R454b | AluZinc Steel |
| VAE 5 Packaged C5 pdf | 17500W59700 BTU/H (5 tons) | 3x460V AC | 1067 mm42 in | 1930 mm76 in | 762 mm30 in | R454b | AluZinc Steel |

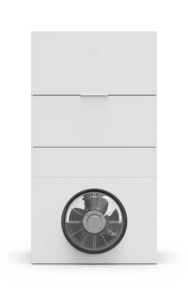

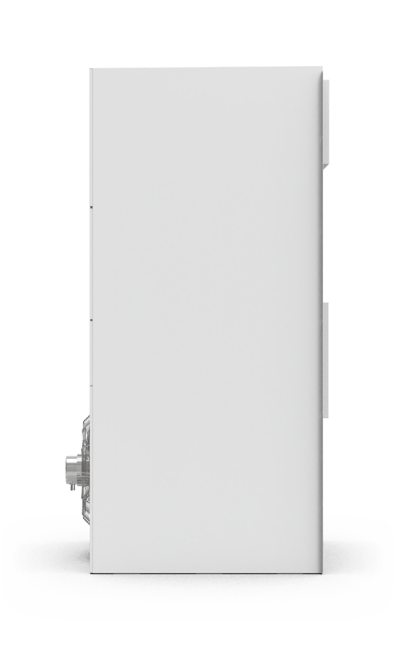

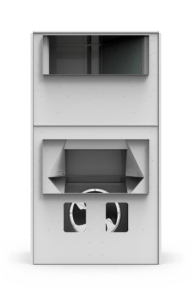

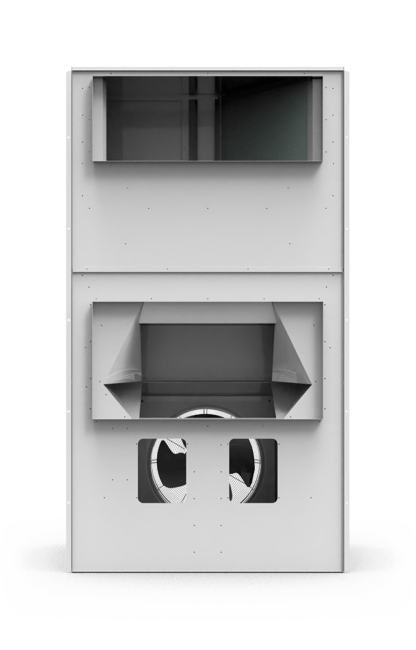

| VAE 10 Packaged A3 pdf | 35000W119400 BTU/H (10 tons) | 3x400V AC | 1338 mm52.7 in | 2395 mm94.3 in | 1100 mm43.3 in | R454b | AluZinc Steel |
| VAE 10 Packaged C5 pdf | 35000W119400 BTU/H (10 tons) | 3x460V AC | 1338 mm52.7 in | 2395 mm94.3 in | 1100 mm43.3 in | R454b | AluZinc Steel |
