WMC Wall-mounted cabinetSeries
The WMC series consists of compact wall-mounted network cabinets designed for server rooms and equipment installations where floor space is limited. With standardized 19-inch rack compatibility and optional integrated cooling, WMC cabinets provide secure mounting for network, telecom, and industrial equipment.
- Wall-mounted cabinet design for network and server rooms
- Standardized 19-inch rack mounting up to 32U capacity
- Single or dual access configuration for front and rear equipment access
- Welded steel construction with powder-coated finish
- IP65 protection with seamless door gaskets
- Optional integrated cooling systems up to 2500 W
Standard compact cabinets designed for equipment installations in:
- Network and server rooms
- Fiber distribution systems
- Industrial automation environments
- Electrical equipment installations
- Motor drives and control systems
- PLC equipment and monitoring systems
- Single access models (1S) with standard front access
- Dual access models (2S) with front and rear equipment access
- Optional viewing windows on front door
- Accepts standard 19-inch rack equipment
- Customizable configurations for diverse applications
- Dual-point locking system for secure installations
- Optional active cooling systems up to 2500 W
- Rack configuration: 1 × 8U – 1 × 32U
- Dual rack configuration: 2 × 8U – 2 × 32U
- Mounting type: wall-mounted
- Rack standard: 19-inch equipment mounting
- Construction: welded steel cabinet design
- EIA / ECA-310E
- Safety in accordance with EN 50298 and EN 60950
- IP65 / NEMA 4 / NEMA 4X protection
- CE / UL / cUL
- RoHS / REACH / CLP compliant
- Telcordia GR-487 capable
- GR-63 Zone 4
Products within the series
Product filters
Product filters
| Product | Rack space | Rack type | Width | Height | Depth | Material | Std. color |
|---|---|---|---|---|---|---|---|
| WMC-8-1S | 1 x 8U | 19" | 600 mm23.6 in | 480 mm18.9 in | 600 mm23.6 in | Aluzinc Steel | RAL 7035 |
| WMC-8-2S | 2 x 8U | 19" | 600 mm23.6 in | 450 mm17.7 in | 710 mm28 in | Aluzinc Steel | RAL 7035 |
| WMC-12-1S | 1 x 12U | 19" | 600 mm23.6 in | 600 mm23.6 in | 600 mm23.6 in | Aluzinc Steel | RAL 7035 |

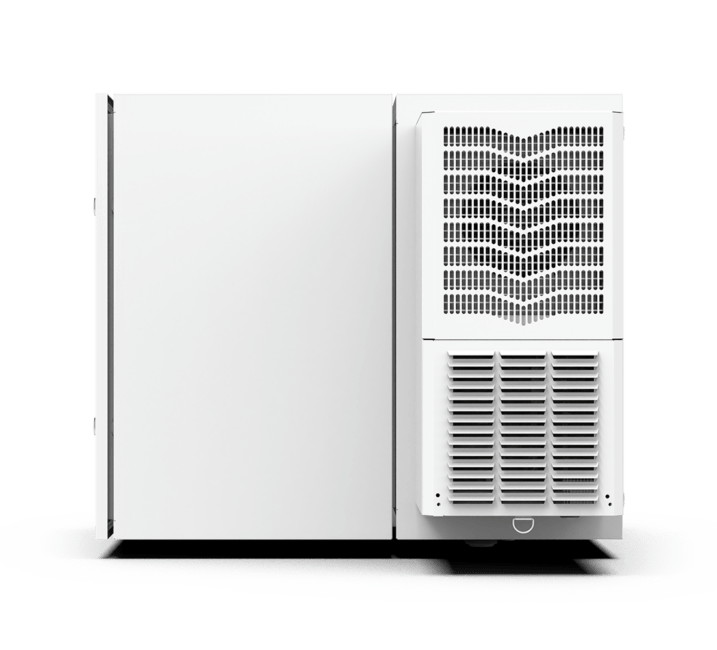

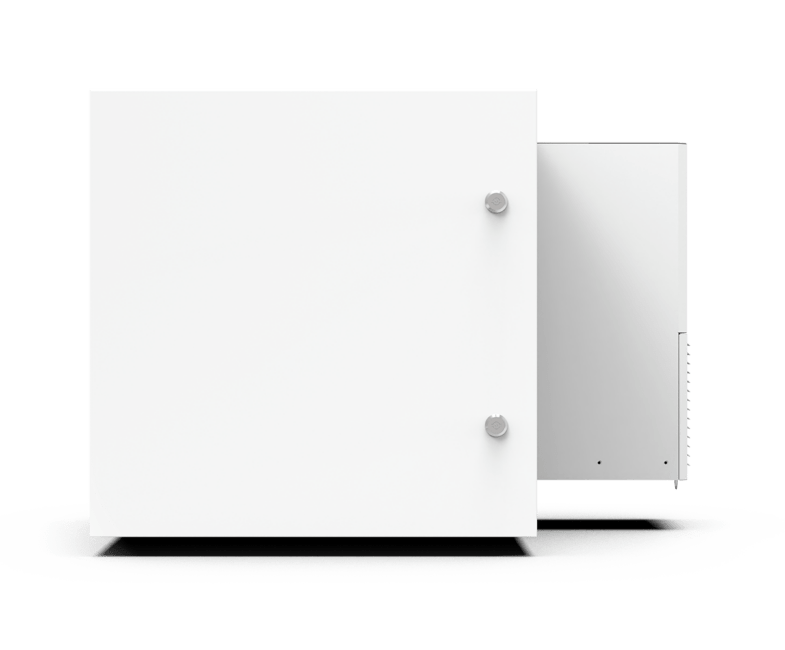

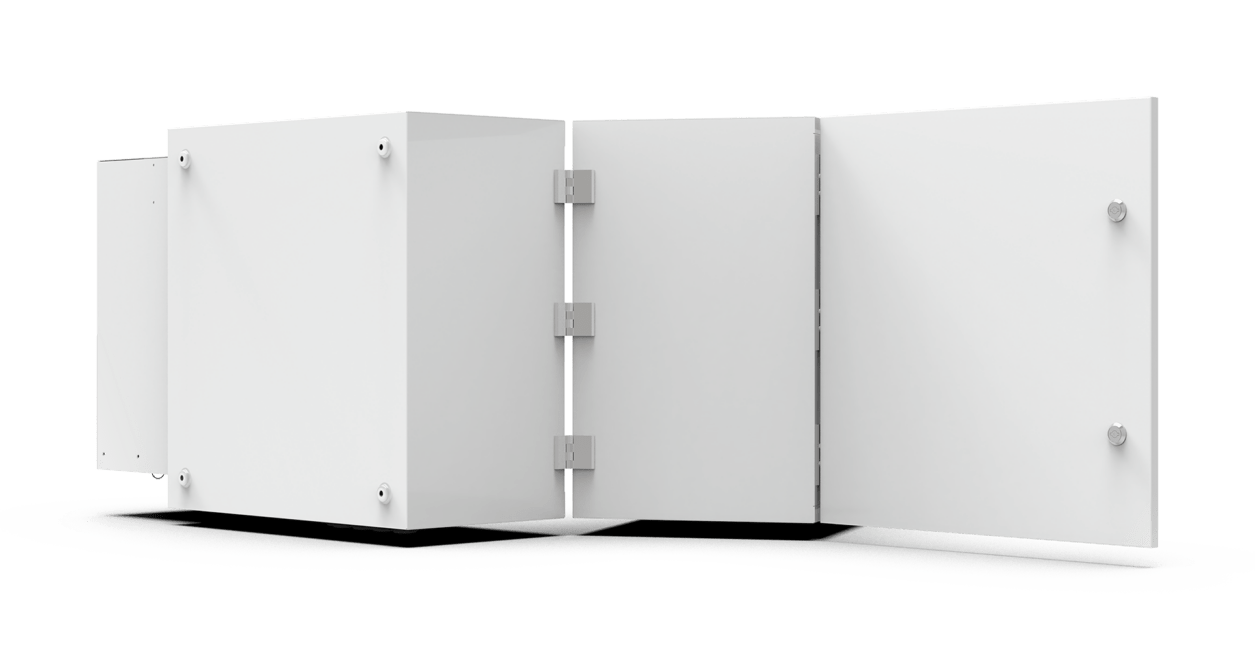

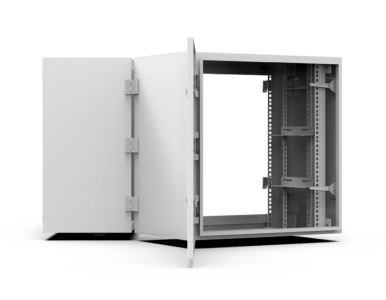

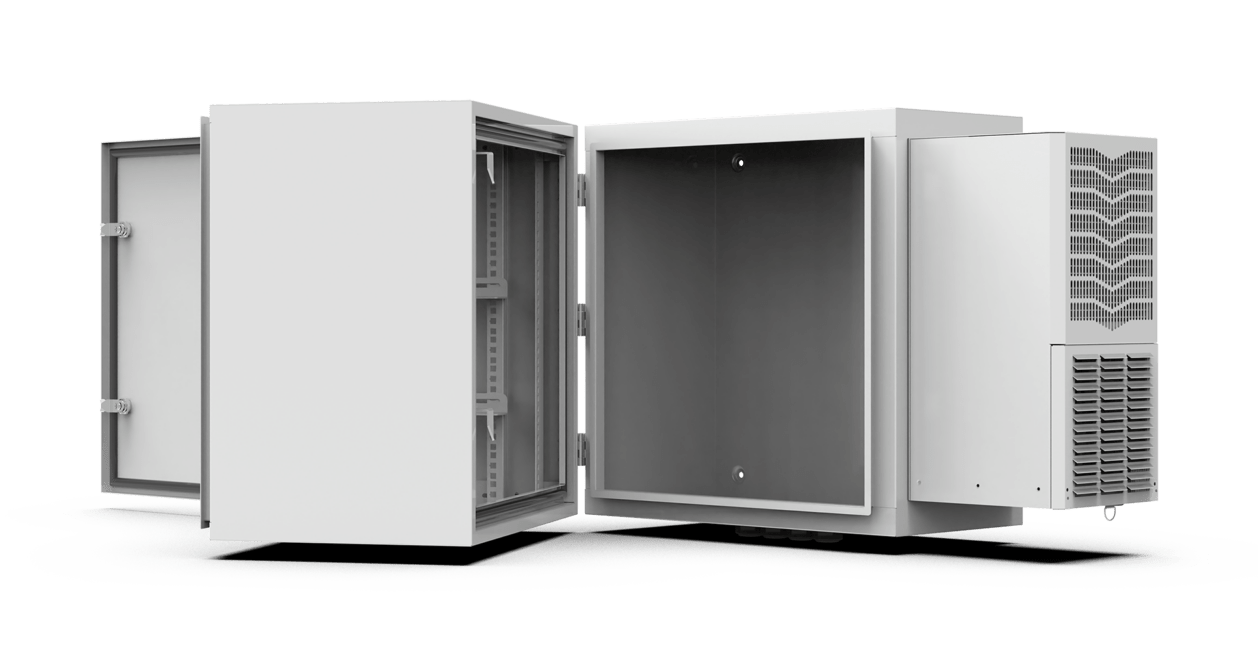

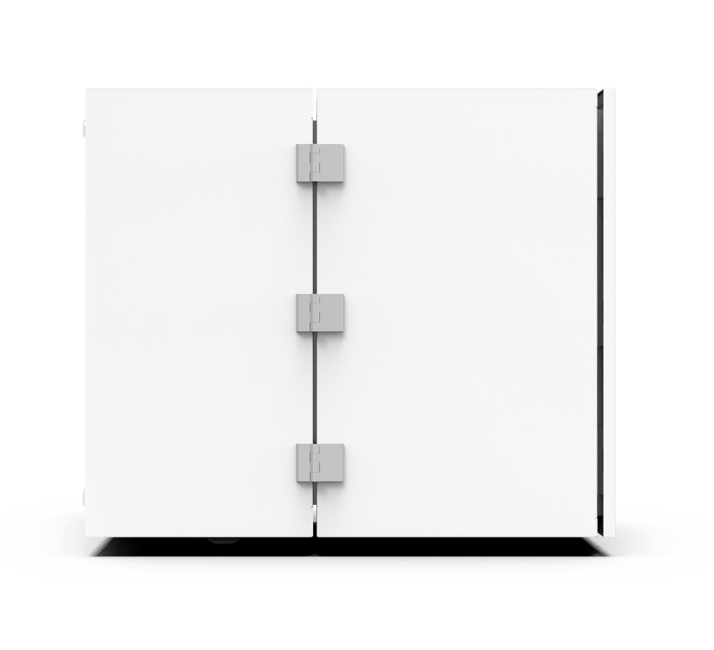

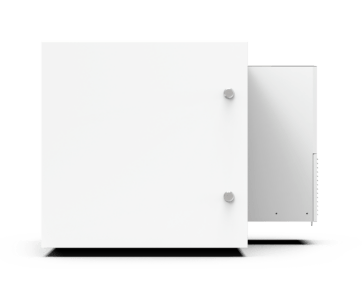

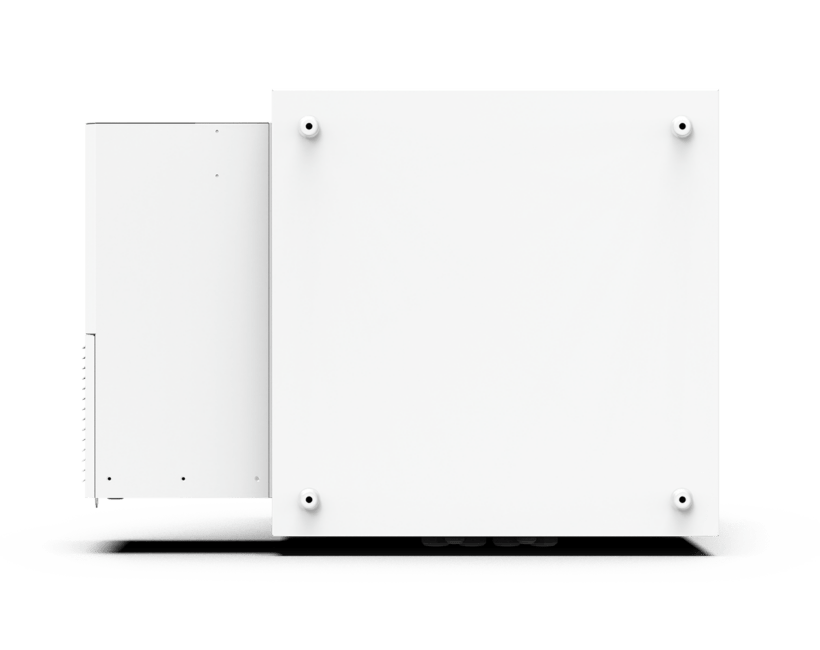

| WMC-12-2S | 2 x 12U | 19" | 600 mm23.6 in | 600 mm23.6 in | 710 mm28 in | Aluzinc Steel | RAL 7035 |
| WMC-19-1S | 1 x 19U | 19" | 600 mm23.6 in | 950 mm37.4 in | 600 mm23.6 in | Aluzinc Steel | RAL 7035 |
| WMC-19-2S | 2 x 19U | 19" | 600 mm23.6 in | 950 mm37.4 in | 710 mm28 in | Aluzinc Steel | RAL 7035 |
| WMC-26-1S | 1 x 26U | 19" | 600 mm23.6 in | 1250 mm49.2 in | 600 mm23.6 in | Aluzinc Steel | RAL 7035 |
| WMC-26-2S | 2 x 26U | 19" | 600 mm23.6 in | 1250 mm49.2 in | 710 mm28 in | Aluzinc Steel | RAL 7035 |
| WMC-32-1S | 1 x 32U | 19" | 600 mm23.6 in | 1550 mm61 in | 600 mm23.6 in | Aluzinc Steel | RAL 7035 |
| WMC-32-2S | 2 x 32U | 19" | 600 mm23.6 in | 1550 mm61 in | 710 mm28 in | Aluzinc Steel | RAL 7035 |
